HT Series

Overview

Nikkiso SGM - series canned motor pumps are centrifugal pumps which, due to their construction are hermetically encapsulated. The shaft seal usually required on centrifugal pumps is not necessary. The pumps are driven by integrated canned motors. Space requirements and noise emissions are much lower than those of conventional centrifugal pumps. The pumps are equipped with Nikkiso's unique E-Monitor.

The HT type is designed for hot fluid applications up to 400 deg C. The pump and the motor are separated by a heat barrier, the motor is additionally equipped with a cooling jacket and a heat exchanger.

The rotor chamber is filled with the pumped liquid, which is circulated through the heat exchanger by an auxiliary impeller, the liquid also lubricates the bearings.

• Compact size
• Axial thrust balanced for long bearing life
• Bearing wear monitoring
• Nikkiso's block building system
• High efficiency

Materials

Other materials on request

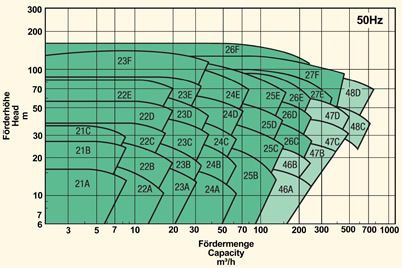

Pressure / Capacity Envelope

Driver

• Integral 3-phase asynchronous motor IP67 / IP55 and ATEX certified
• The motors are in accordance with VDE/EN requirements
• Motor safeguarded by incorporated thermostat(s)

Applications

Nikkiso HT Series canned motor pumps can be used with numerous liquids and also offer advantages over conventional pumps when pumping water.

HT Type pumps are mainly used for liquids at high temperature like heat transfer oil and hot water (>+200 deg C)

The pumps are proven for use in vacuum systems.

The pumps are designed for the:-

• The Chemical and Pharmaceutical industry
• The Petrochemical industry
