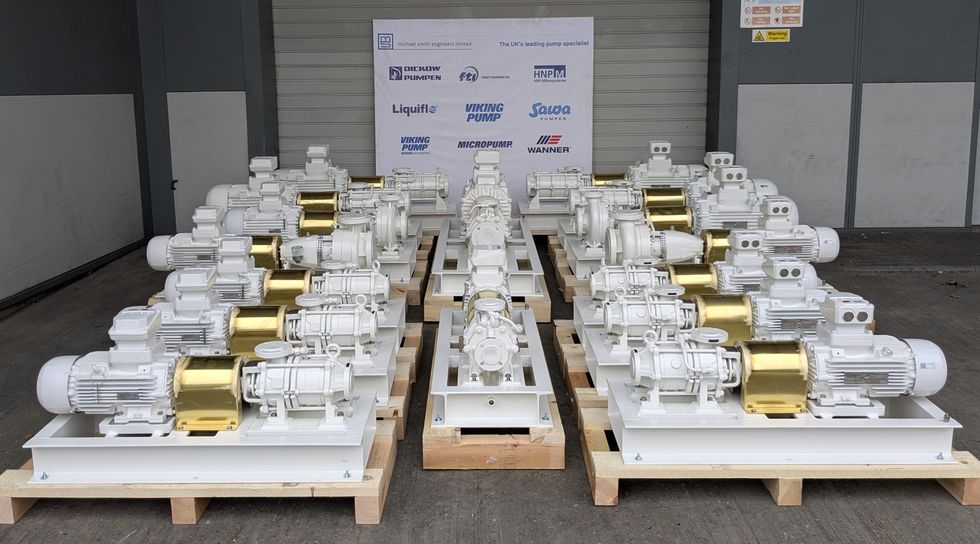

At first glance, this may seem like a collection of various centrifugal pumps. In reality, only four of the sixteen pumps are centrifugals: two Dickow NCL hu 50/120 models equipped with 7.5 kW, 2-pole motors, and two Dickow NCL hu 65/165 models featuring 3 kW, 4-pole motors.

The remaining twelve pumps are self-priming side channel pumps of various sizes, with the smallest being seven single stage Dickow SC h 3571 models with 2.2 kW, 4-pole motors, and the largest being a three-stage Dickow SC h 5073 powered by a 22 kW, 4-pole motor.

The brass coupling guards provide a clue that these pumps are ATEX-certified, making them suitable for hazardous environments. This certification is critical, as these pumps are destined for jet fuel transfer applications at a major UK fuel terminal.

Side channel pumps offer numerous features (self-priming, low NPSHR, ability to handle entrained gases), making them an optimal solution for fuel transfer applications. Being able to offer the ideal pump for a particular application is what makes us the go to solution provider for so many challenging pumping applications.

Side Channel pump details;

4-off
Dickow mechanically sealed self-priming two-stage side-channel pump model SC h 5072 long coupled on a baseplate to a Siemens (Innomotics) 15 kW, 4 pole, 415 volt, three phase, 50 hertz, IP55, IE3, ATEX Ex db eb IIC T4 motor with thermistors.

7-off
Dickow mechanically sealed self-priming single-stage side-channel pump model SC h 3571 long coupled on a baseplate to a Siemens (Innomotics) 2.2 kW, 4 pole, 415 volt, three phase, 50 hertz, IP55, IE3, ATEX Ex db eb IIC T4 motor with thermistors.

1-off
Dickow mechanically sealed self-priming three-stage side-channel pump model SC h 5073 long coupled on a baseplate to a Siemens (Innomotics) 22 kW, 4 pole, 415 volt, three phase, 50 hertz, IP55, IE3, ATEX Ex db eb IIC T4 motor with thermistors.

• Liquid - Jet A1 / Mixture of Jet A1 and water
• Flow Rate – Various up to 15 m³/hr
• Differential Head - Various up to 44 metres
• Temperature - 20°C operating / -10 to +30°C ambient
• Viscosity - 1.9 cP
• ATEX – ATEX II 2G Ex db eb IIC T4 Gb
• Casing Material – Stainless Steel
• Ability to self-prime

Centrifugal pump details:

1-off
Dickow mechanically sealed centrifugal pump model NCL hu 50/210 long coupled on a baseplate to a Siemens (Innomotics) 7.5 kW, 2 pole, 415 volt, three phase, 50 hertz, IP55, IE3, ATEX II 2G Ex db eb IIC T4 Gb motor with thermistors.

2-off
Dickow mechanically sealed centrifugal pump model NCL hu 65/165 long coupled on a baseplate to a Siemens (Innomotics) 3 kW, 4 pole, 415 volt, three phase, 50 hertz, IP55, IE3, ATEX II 2G Ex db eb IIC T4 Gb motor with thermistors.

1-off
Dickow mechanically sealed centrifugal pump model NCL hu 50/210 long coupled on a baseplate to a Siemens (Innomotics) 11 kW, 2 pole, 415 volt, three phase, 50 hertz, IP55, IE3, ATEX Ex db eb IIC T4 motor with thermistors.

• Liquid - JPTS / Mixture of water and JPTS
• Flow Rate - Various up to 36 m³/hr
• Differential Head - Various up to 50 metres
• Temperature - 20°C operating / -10 to +30°C ambient
• Viscosity - 1.9 cP
• ATEX – ATEX II 2G Ex db eb IIC T4 Gb
• Casing Material – Carbon Steel
