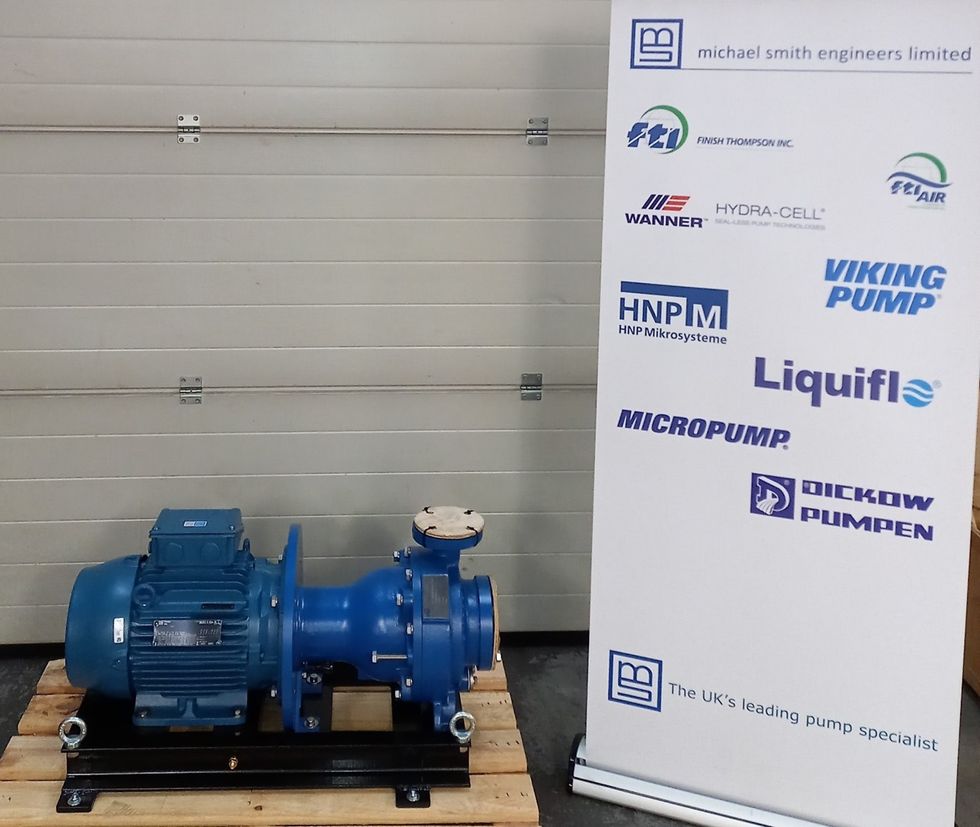

This UC328 seal-less magnetically coupled centrifugal pump from Finish Thompson will deliver 30 m³/hr against 5 bar differential pressure.

This is another hydrogen production related application for circulation of de-ionised water.  The pump is ETFE-lined ensuring no leaching of material into the process liquid, which would otherwise adversely impact the electrolysis process.

Finish Thompson magnet drive pump UC328COCSSVS77516 with 3" x 2" ANSI 150# flanges close coupled to 15 kW 2 pole 400 volt 3 phase 25-50Hz IE3 ip55 motor on baseplate.

• Liquid - De-ionised water
• Flow Rate - 30 m³/hr
• Pressure - 3 to 5 Bar
• Temperature - 70°C
• Viscosity - <1 cP
• Wetted Materials - Dupont tefzel lined ductile iron / carbon fibre filled ETFE / alpha sintered silicon carbide / FKM / neodymium iron boron magnets encapsulated in ETFE / molded CF ETFE liner with aramid reinforced epoxy external shell
