FINISH THOMPSON UC SERIES MODELS UC1516A, UC1516L, UC2110, UC1518 AND UC328 FOR PUMPING CHEMICALS

The problem is you need to pump a variety of harsh chemicals. Hydrochloric acid, sulphuric acid, polyaluminium chloride, sodium hydroxide to name but a few. To add to the problem, you need more than one or two pumps, you need twenty-five!

You need these pumps to be safe.

You need these pumps to be reliable.

You need these pumps to be able to handle ALL these chemicals, and you need standardisation.

The solution, for those who know these things, is simple. The Ultrachem UC series heavy duty mag-drive pumps from Finish Thompson. The UC series is designed to handle the most challenging chemistries. The powerful neodymium inner magnets are completely encased in ETFE for ultimate corrosion protection. The magnetic drive system means leak-free operation and no mechanical seals to service. All the pumps follow a standard design which coupled with universality of some parts reduces maintenance costs.

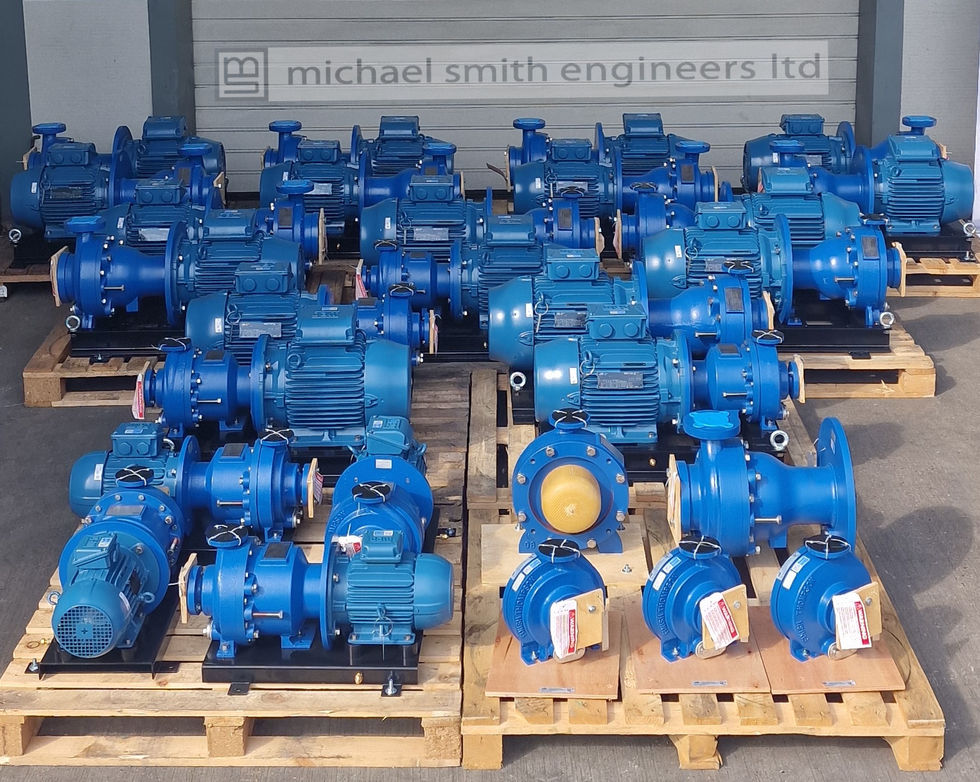

The pumps supplied were in five sizes, all ETFE lined ductile iron casing close coupled to WEG 2 pole motors. Delivering 2- 50 m³/hr at up to 9 bar differential pressure. All pumps were assembled in our workshop and delivered within less than two months.

Finish Thompson seal-less magnetically coupled centrifugal pump model UC1516AECSSVF50015 close coupled on a baseplate to a 4 kW, 2 pole, 400 volt, three phase, 50 Hz, IP55, motor. 1.5” x 1” ANSI 150# flange connections. 5” impeller diameter. NPSHR = 0.38 bar. ETFE-lined ductile iron casing, FKM o-rings, silicon carbide bushing and shaft, flurosint thrust ring. A 4 kW motor is included to cover the end of curve condition. The pump will achieve the required duty point when run at ~ 2885 rpm.

• Liquid - 96-98% Sulphuric acid
• Flow Rate - 20 m³/hr vs 2 bar differential pressure
• Temperature - 30°C
• Density - 1.84 SG
• Viscosity - 25 cP

Finish Thompson seal-less magnetically coupled centrifugal pump model UC1516LAECSSVS41215 close coupled on a baseplate to a 3 kW, 2 pole, 400 volt, three phase, 50 Hz, IP55, motor. 1.5” x 1” ANSI 150# flange connections. 4.125” impeller diameter. NPSHR = 0.23 bar. ETFE-lined ductile iron casing, FKM o-rings, silicon carbide bushing, shaft and thrust ring. A 4 kW motor is included to cover the end of curve condition. The pump will achieve the required duty point when run at ~ 2885 rpm.

• Liquid - 96-98% Sulphuric acid
• Flow Rate - 2 m³/hr vs 2.2 bar differential pressure
• Temperature - 30°C
• Density - 1.84 SG
• Viscosity - 25 cP

Finish Thompson seal-less magnetically coupled centrifugal pump model UC2110COCSSVS96219 close coupled on a baseplate to a 22 kW, 2 pole, 400 volt, three phase, 50 Hz, IP55, motor. 2” x 1” ANSI 150# flange connections. 9.625” impeller diameter. NPSHR = 0.35 bar. ETFE-lined ductile iron casing, FKM o-rings, silicon carbide bushing, shaft and thrust ring. A 22 kW motor is included to cover the end of curve condition. The pump will achieve the required duty point when run at ~ 2710 rpm. This pump has been sized to run at this lower speed to assist with solids handling.

• Liquid - 10-18% Polyaluminium chloride with 5% solids
• Flow Rate - 15 m³/hr vs 9 bar differential pressure
• Temperature – 80°C
• Density - 1.3 SG
• Viscosity - 20 cP

Finish Thompson seal-less magnetically coupled centrifugal pump model UC328COCSSVS70016 close coupled on a baseplate to a 15 kW, 2 pole, 400 volt, three phase, 50 Hz, IP55, motor. 3” x 2” ANSI 150# flange connections. 7” impeller diameter. NPSHR = 0.4 bar. ETFE-lined ductile iron casing, FKM o-rings, silicon carbide bushing, shaft and thrust ring. A 15 kW motor is included for commonality across all 10 off UC328 units. The pump will achieve the required duty point when run at ~ 2790 rpm.

• Liquid - Aluminium chlorohydrate
• Flow Rate - 50 m³/hr vs 4.2 bar differential pressure
• Temperature - 60°C
• Density - 1.35 SG
• Viscosity - 1.5 to 20 cP

Finish Thompson seal-less magnetically coupled centrifugal pump model UC328COCSSVS70016 close coupled on a baseplate to a 15 kW, 2 pole, 400 volt, three phase, 50 Hz, IP55, motor. 3” x 2” ANSI 150# flange connections. 7” impeller diameter. NPSHR = 0.4 bar. ETFE-lined ductile iron casing, FKM o-rings, silicon carbide bushing, shaft and thrust ring. A 15 kW motor is included to cover the end of curve condition, and for commonality across all 10 units. The pump will achieve the required duty point when run at ~ 2830 rpm.

• Liquid - 10-18% Polyaluminium chloride
• Flow Rate - 50 m³/hr vs 4.2 bar differential pressure
• Temperature - 80°C
• Density - 1.3 SG
• Viscosity - 20 cP

Finish Thompson seal-less magnetically coupled centrifugal pump model UC328COCSSVS70016 close coupled on a baseplate to a 15 kW, 2 pole, 400 volt, three phase, 50 Hz, IP55, motor. 3” x 2” ANSI 150# flange connections. 7” impeller diameter. NPSHR = 0.4 bar. ETFE-lined ductile iron casing, FKM o-rings, silicon carbide bushing, shaft and thrust ring. A 15 kW motor is included to cover the end of curve condition, and for commonality across all 10 units. The pump will achieve the required duty point when run at ~ 2830 rpm.

• Liquid - 11.5% Aluminium chloride
• Flow Rate - 50 m³/hr vs 4.2 bar differential pressure
• Temperature - 45 to 80°C
• Density - 1.3 SG
• Viscosity - 20 cP

Finish Thompson seal-less magnetically coupled centrifugal pump model UC1518BECSSVS81216 close coupled on a baseplate to a 15 kW, 2 pole, 400 volt, three phase, 50 Hz, IP55, motor. 1.5” x 1” ANSI 150# flange connections. 8.125” impeller diameter. NPSHR = 0.34 bar. ETFE-lined ductile iron casing, FKM o-rings, silicon carbide bushing, shaft and thrust ring. A 15 kW motor is included to cover the end of curve condition, and for commonality across all 8 units. The pump will achieve the required duty point when run at ~ 2815 rpm.

• Liquid - 10-18% Polyaluminium chloride with 1% solids
• Flow Rate - 20 m³/hr vs 7 bar differential pressure
• Temperature - 80°C
• Density - 1.3 SG
• Viscosity - 20 cP
