HYDRA-CELL G SERIES PUMP MODELS G10ERSJSNETB, G10EPSJSNETE AND G10EP_JTTTTB FOR PUMPING POTASSIUM HYDROXIDE, TOLUENE AND CYCLOHEXANE

We offer a wide range of pump solutions for chemical applications, but when it comes to low-flow, high-pressure duties, our go-to choice is often a Hydra-Cell multi-diaphragm pump from Wanner International.

In this project, the pumps were required to transfer a range of difficult to handle chemicals including Potassium Hydroxide, and flammable solvents such as Toluene and Cyclohexane.

This combination demanded a pump that was not only chemically resistant and ATEX rated for hazardous area use, but also capable of delivering flow rates from 2–20 lpm at discharge pressures of up to 32 bar.

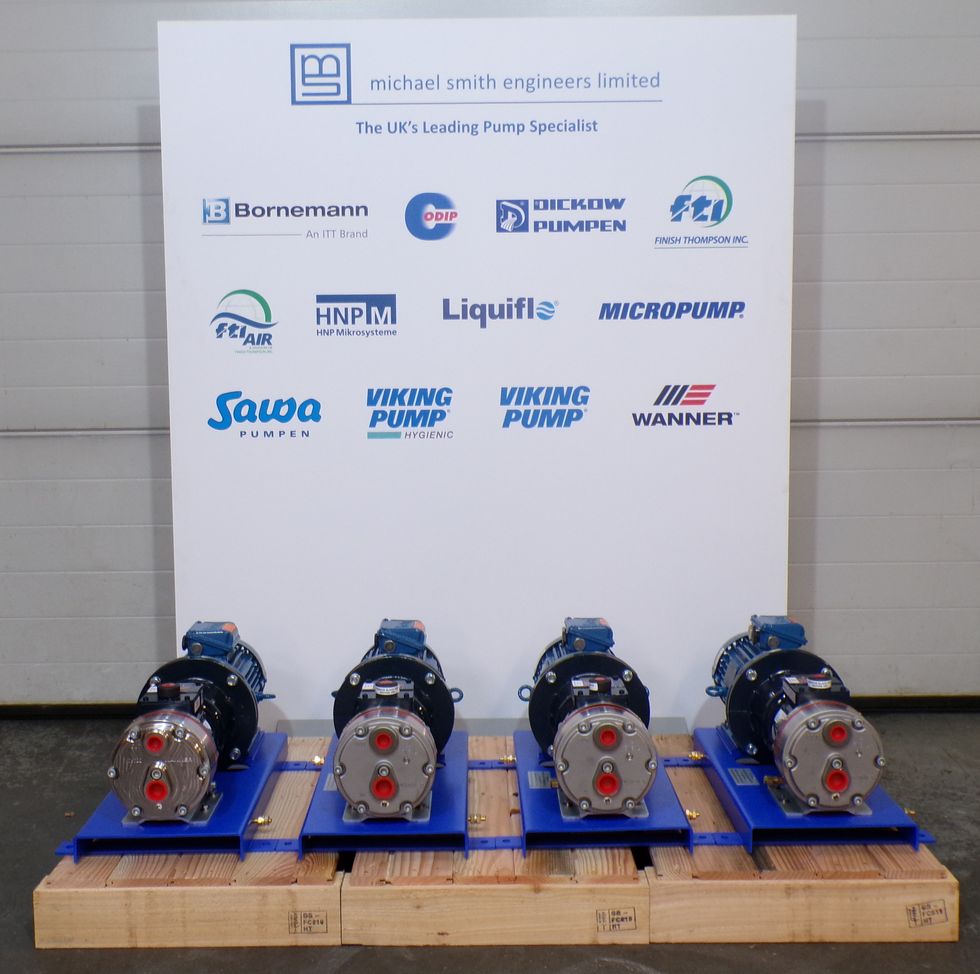

Our solution was four Wanner Hydra-Cell seal-less triplex diaphragm pumps (G10 model) in stainless steel, close-coupled to 3 kW, 4-pole ATEX Zone 2 motors - providing reliability, safety, and performance in a demanding chemical environment.

Wanner pump model G10ERSJSNETB with 1” x ¾” BSPT connections including ATEX Z2 oil bowl close coupled to a 3 kW, 4 pole, 400 volt, 3 phase, 5-50 Hz, IP55, IE3 ATEX II 3G Ex ec IIC T3 Gc motor with thermistors on baseplate.

• Liquid - Toluene with organic peroxide (non-corrosive)
• Flow Rate - 1 to 20 l/min
• Temperature - 15 to 30°C
• Density - 0.93 g/ml
• Viscosity - 0.55 cP
• Discharge Pressure - 32 Barg

Wanner pump G10EPSJSNETE with 1” x ¾” BSPT connections including ATEX Z2 oil bowl close coupled to 3 kW, 4 pole, 400 volt, 3 phase, 5-50 Hz, IP55, IE3 ATEX II 3G Ex ec IIC T3 Gc motor including thermistors on baseplate.

• Liquid - Potassium Hydroxide (KOH) solution (with water)
• Flow Rate - 1 to 10 l/min
• Temperature - 15 to 30°C
• Density - 1.28 g/cm³
• Viscosity - 2.4 cP
• Discharge Pressure - 32 Barg

Wanner pump G10EP_JTTTTB with 1” x ¾” BSPT connections including ATEX Z2 oil bowl close coupled to 3 kW, 4 pole, 400 volt, 3 phase, 5-50 Hz, IP55, IE3 ATEX II 3G Ex ec IIC T3 Gc motor including thermistors on baseplate.

• Liquid - Butyryl Chloride (neat)
• Flow Rate - 1 to 10 l/min
• Temperature - 15 to 30°C
• Density - 1.03 g/cm³
• Viscosity - 0.8 cP
• Discharge Pressure - 32 Barg
