LIQUIFLO PUMP MODEL H5R FOR PUMPING CORROSIVE CHEMICALS

This 316 stainless-steel seal-less magnetic-drive external gear pump, paired with a 1.1 kW 6-pole ATEX Zone 1 motor, is designed for a demanding chemical pumping application in the plastics industry.

Part of the H-series from Liquiflo Equipment Company, this H5F pump was selected to provide pulse-free transfer at 8 l/min of a hazardous, flammable and corrosive liquid against differential pressures up to 5 bar.

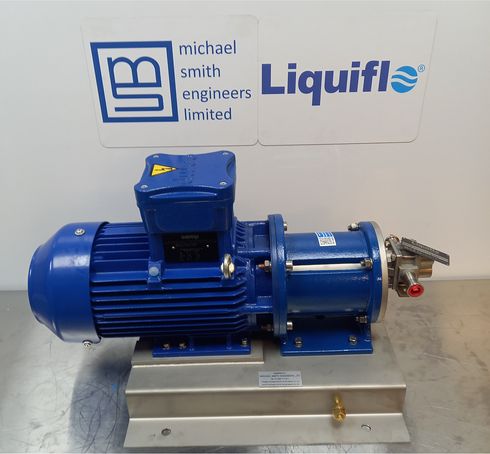

LIQUIFLO magnet drive pump model H5RN6PEE400000US with ¾” tri-clamp ports close coupled to 1.1 kW 6 pole 400/3/50 Hz ATEX Ex II 2G Ex db IIB T4 IP55 motor with thermistors on baseplate

• Liquid - Proprietary flammable liquid
• Flow Rate - 8 l/min
• Differential Pressure - 5 Bar
• Viscosity - 1 to 5 cP
• ATEX - Zone 1
• Wetted Materials - 316 stainless steel / PEEK / carbon graphite / tungsten carbide / teflon
