LIQUIFLO H SERIES PUMP MODEL H5FXPP4B302000US-8(176) FOR POTASSIUM HYDROXIDE

External gear pump for hydrogen production

These days, it’s rare for a week to pass without us shipping pumps for the hydrogen production industry. Our latest shipment is for Liquiflo H5F external gear pumps, specifically supplied for a hydrogen electrolysis application.

These pumps are designed to transfer 30% potassium hydroxide (KOH) at temperatures up to 80°C. Given the relatively high temperature and the corrosive, irritant nature of KOH, the pumps are built with stainless steel casings and use a seal-less magnetic-drive configuration for added safety.

Each pump is paired with a 0.55 kW, 4-pole, ATEX Zone 2 motor, delivering a consistent flow of 4 LPM at 4 bar pressure.

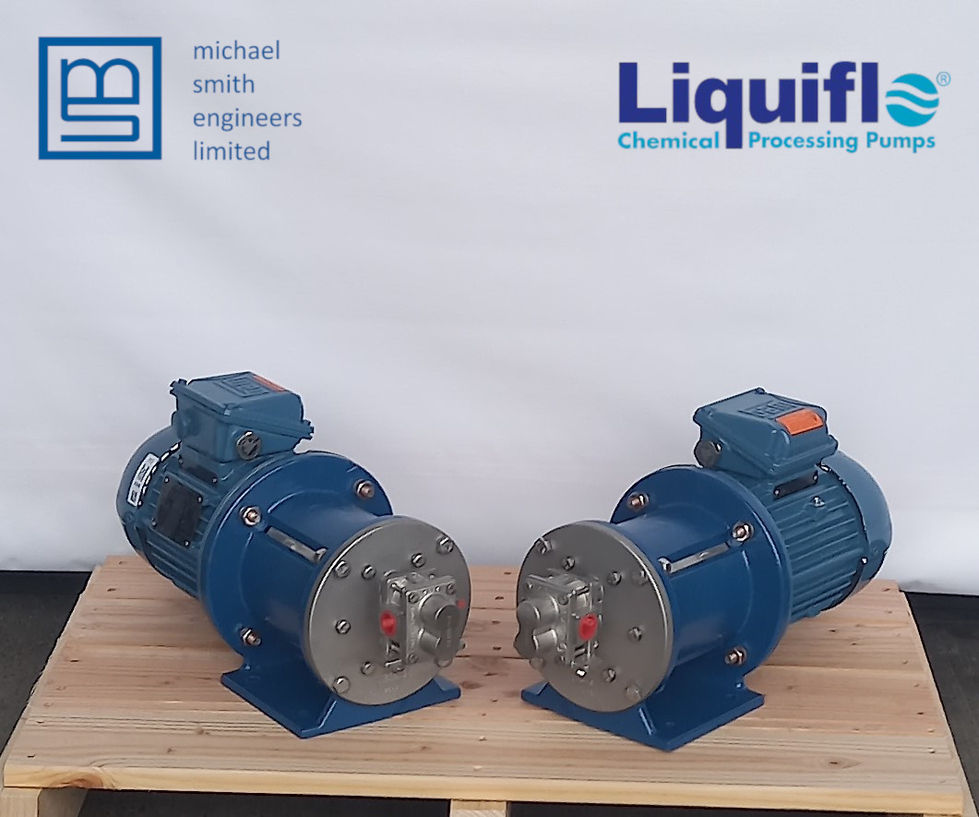

Liquiflo magnet drive pump model H5FXPP4B302000US-8(176) with ½” BSP connections close coupled to 0.55 kW, 4 pole, 400 volt, 3 phase, 50 Hz ATEX II 3G Ex ec IIC T3 Gc IP55 motor with thermistors.

  • Liquid - 30% potassium hydroxide
  • Flow Rate - 4 l/min
  • Pressure - 4 Bar
  • Temperature - 20 to 80°C
  • Viscosity - 0.45 to 1.3 cP
  • Wetted Materials - 316 Stainless Steel / PEEK / Silicon Carbide / Tungsten Carbide / Teflon
