Side Channel Pumps

A range of horizontal and vertical side channel pumps for low flow pumping at high differential heads

Dickow side channel pumps are specifically designed for efficient, economical pumping of low volumes of clean liquids at high differential pressures.  These pumps are self priming and can pump large amounts of entrained gas without any problem, making them an ideal choice for loading and unloading applications.  When supplied with a suction centrifugal impeller, the NPSHR can be below 1.0 metres allowing them to be used on condensate and low NPSH applications without problem.

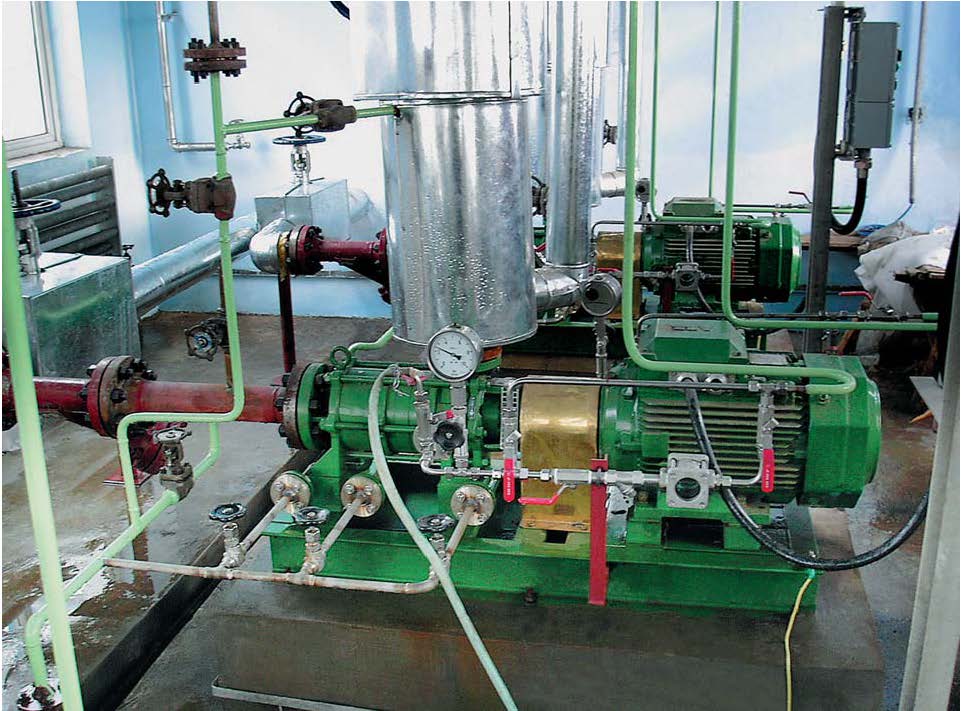

Side Channel Pump with Shaft Seal

Side Channel Pump with Shaft Seal

As well as a complete range of horizontal mount side channel pumps with a choice of different shaft seals, Dickow also offer vertical configurations for mounting directly above tanks and truck mounted options for operating with a hydraulic motor. All the side channel pumps are self priming by design.

  • Capacities to 50 m³/hr
  • Differential heads to 400 metres
  • Temperatures to 180°C
More Info

Side-Channel Pump with Magnet Drive

Side-Channel Pump with Magnet Drive

Dickow magnet drive side-channel pumps are hermetically sealed making them suitable for pumping hazardous, flammable or corrosive liquids without any leakage. Options include cast iron and stainless steel wetted materials as well as close coupled and frame mount configurations. A vertical design is available for mounting above underground tanks for tank unloading.

  • Capacities to 37 m³/hr
  • Differential heads to 400 metres
  • Temperatures to 180°C
  • High system pressure option for up to 110 Bar
More Info
