Hilge Hygienic Centrifugal pumps

Products in the Range

GEA Hilge hygienic centrifugal pumps are available for all applications in the beverage, food, pharma and personal care sectors, with appropriate certifications available for each industry.

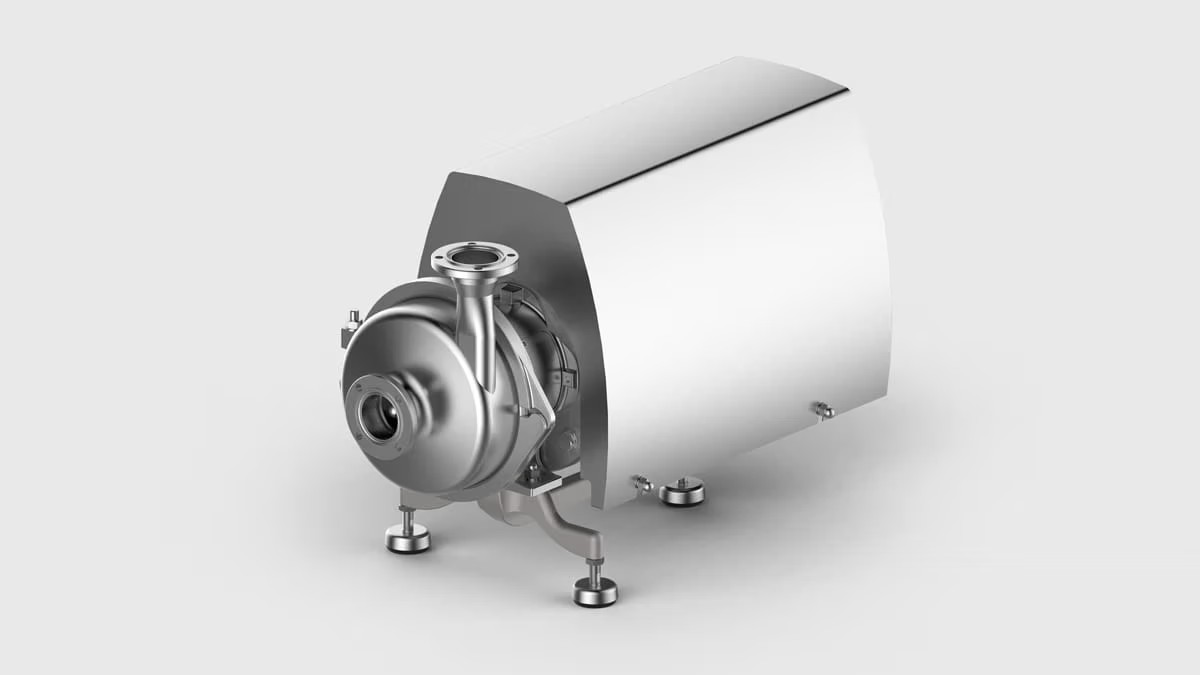

GEA HILGE HYGIA

The premium pump series GEA Hilge HYGIA consists of single-stage end-suction centrifugal pumps, designed for use in industries with high demands to hygiene and flexibility. The materials used for GEA Hilge HYGIA pumps have been selected for the use in hygienic processes. The housings are made of CrNiMo rolled steel (1.4404 / 1.4435) and have a smooth surface without pores and blowholes (Hygienic Design).

GEA Hilge HYGIA pumps are ideally adaptable to customer needs and demanding tasks thanks to variable connections, seals, mountings, infinitely adjustable pressure port and housing variants for up to 25 bar system pressure.

GEA HILGE HYGIA H

GEA Hilge HYGIA H is a single-stage centrifugal pump designed for high system pressures of up to 64 bar, ideal for membrane filtration processes such as reverse osmosis (RO) and nanofiltration (NF). For the GEA Hilge HYGIA H, only cast-free stainless steels with pore-and blowhole-free surfaces are used in the product-contact area. The 3-A-certified series is based on the well-known GEA Hilge HYGIA design without dead ends and can be used in all industries with high demands on hygiene and reliability.

The robust design with forged components, the use of standard motors and a sealing concept that is individually tailored to the respective pumped medium make the GEA Hilge HYGIA H a flexible series that can be used in numerous areas of application in which a reliable, hygienic pump function is required.

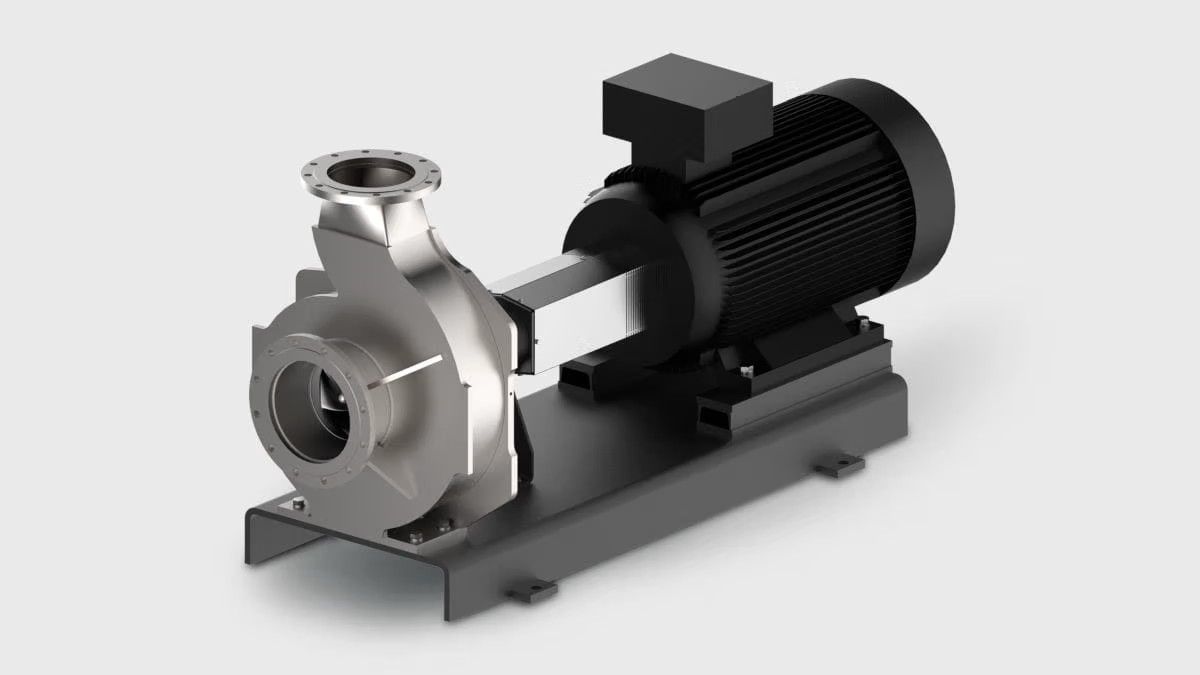

GEA HILGE MAXA

The GEA Hilge MAXA range offers single-stage end-suction centrifugal pumps designed for heavy-duty operation in industrial processes. The GEA Hilge MAXA range is made in a durable, robust construction from welded, rolled stainless steel in AISI 316L (1.4404). Flexible mounting options are available, such as a close-coupled pump, a close-coupled pump with bearing bracket or a base plate pump version (with motors up to 160 kW).

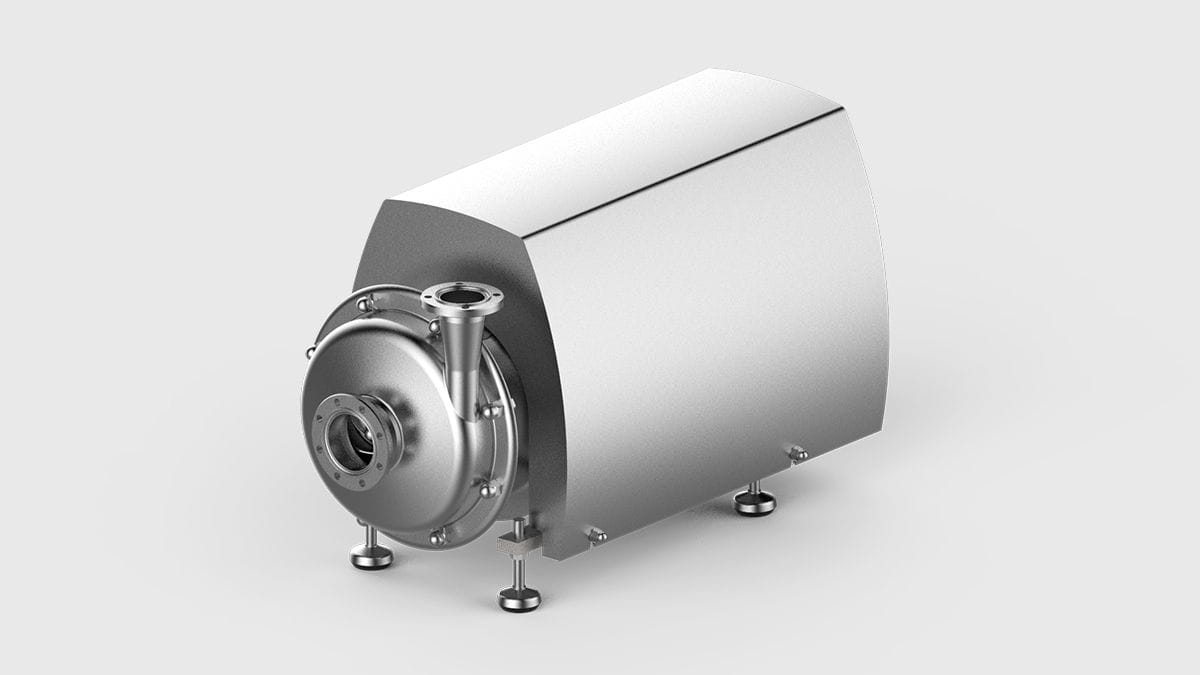

GEA HILGE TP

The energy-efficient and hygienic GEA Hilge TP centrifugal pumps are available in a variety of model sizes, optimally configured for different applications. The centrifugal pump GEA Hilge TP is designed for the hygienic pumping in different applications. Low flow velocities and gentle discharge of media through the spiral housing enables extremely gentle product handling. 11 different pump sizes are available covering a large capacity range, fine-tuned for each task

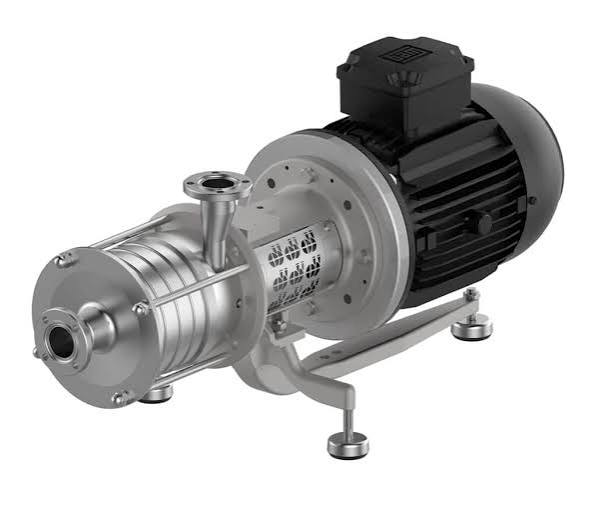

GEA HILGE CONTRA

The GEA Hilge CONTRA range offers single- and multi-stage end-suction centrifugal pumps designed in accordance with the Qualified Hygienic Design (QHD) criteria for hygienically safe product handling and maximum adaptation options. GEA Hilge CONTRA pumps are especially smooth and quiet in operation due to the balanced construction of the pump hydraulics and high motor efficiency. Apart from DIN, ASME and ANSI connections, a flexible range of custom connections is available upon request.

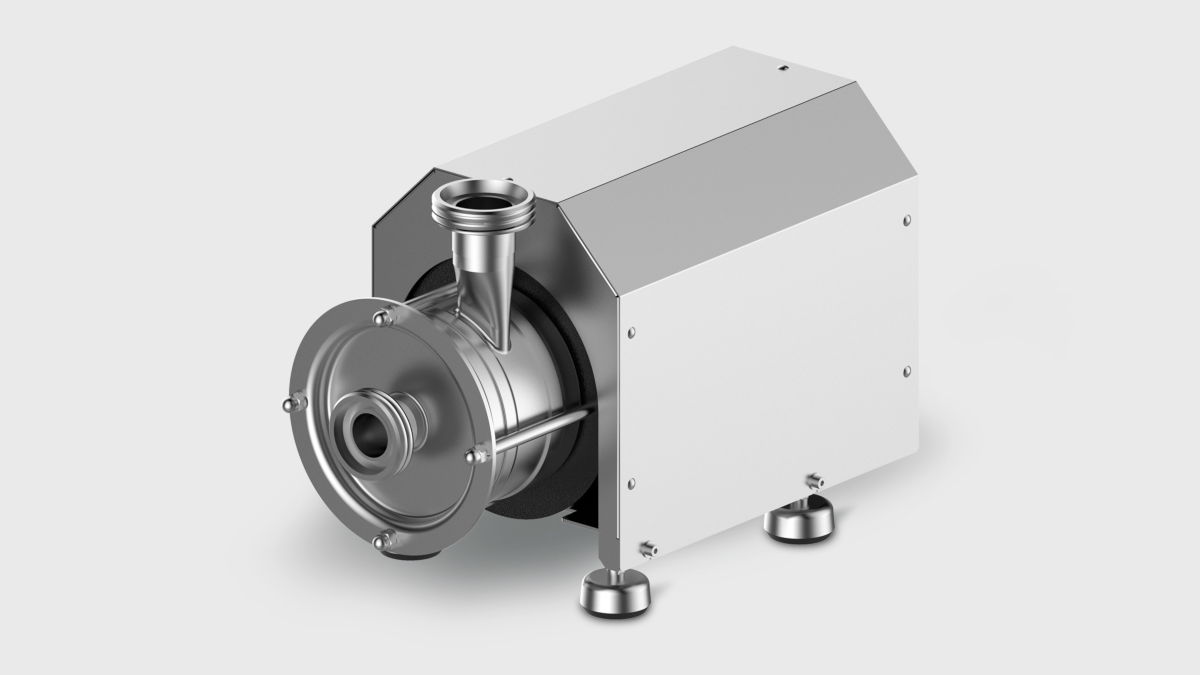

GEA HILGE DURIETTA

The GEA Hilge DURIETTA is a close-coupled, end-suction, single- or multi-stage centrifugal pump created for all kinds of standard applications under hygienic conditions. The GEA Hilge DURIETTA is designed in compliance with food technology requirements, making the range ideal for jobs where hygiene is a key concern. It is CIP- and SIP-capable with the performance characteristics outlined for pumps in DIN 12462.

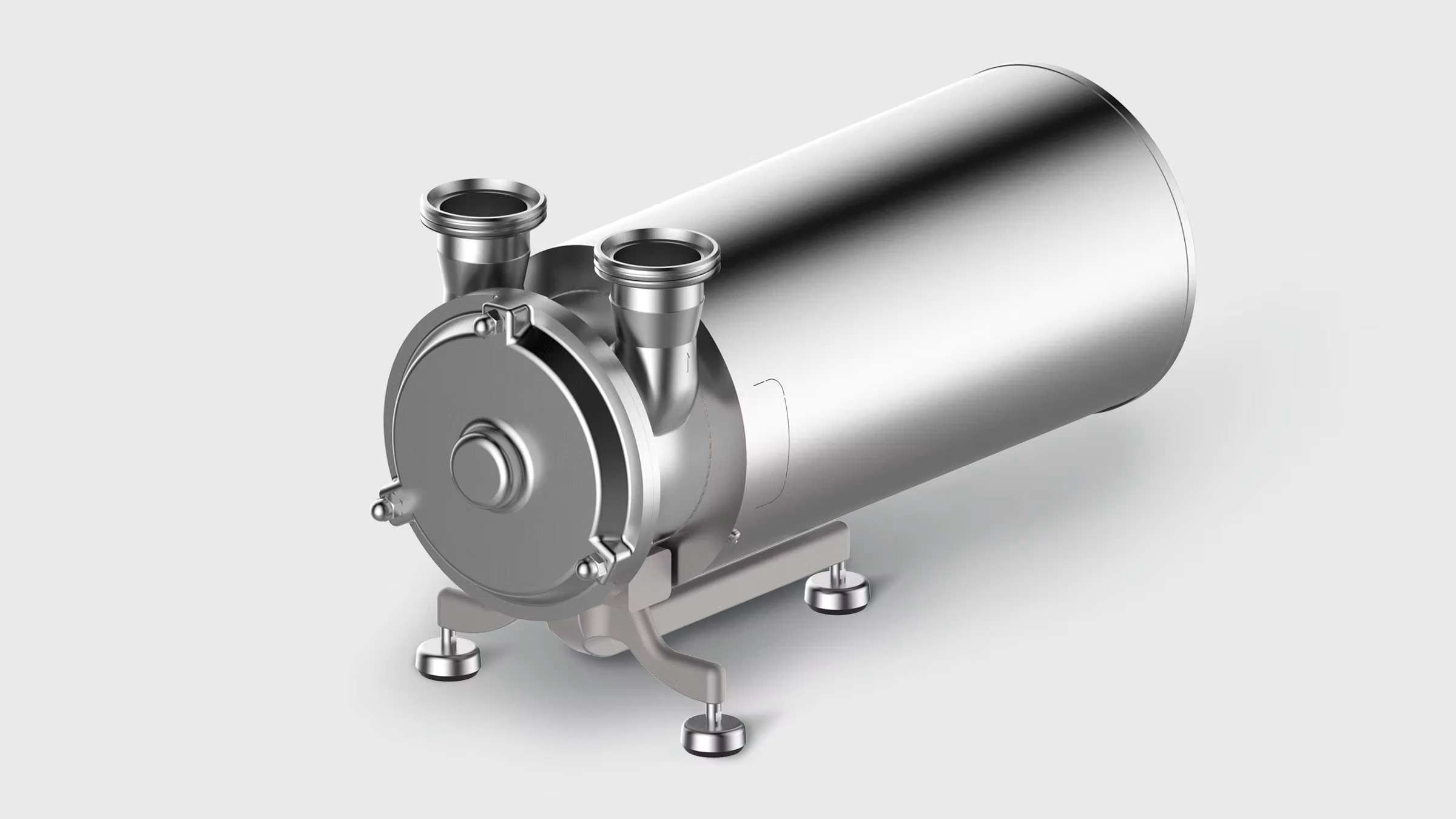

GEA HILGE SIPLA

The GEA Hilge SIPLA range offers self-priming side channel pumps for demanding applications, high reliability and smooth operation for the success of your production and cleaning processes. The GEA Hilge SIPLA range of self-priming side channel pumps offers clockwise and counterclockwise rotation e.g. for facilitated CIP processes. The top casing connections ensure that the pump is not drained when not running. Robustness characterizes the components of the GEA Hilge SIPLA family. The all-stainless steel construction exemplifies GEA‘s commitment to quality and efficiency

GEA HILGE SIPLA-HT

With the continuous Qualified Hygienic Design (QHD) and use of pore- and blowhole-free materials, GEA Hilge SIPLA-HT pumps are used in the food and beverage as well as in the pharmaceutical, biotech and personal care industries. These self-priming pumps offer a long operating life even under the harshest operating conditions, e.g. pumping media with a high gas content, or in CIP return systems. The SIPLA-HT can be optionally equipped with an integrated frequency converter for speed control.

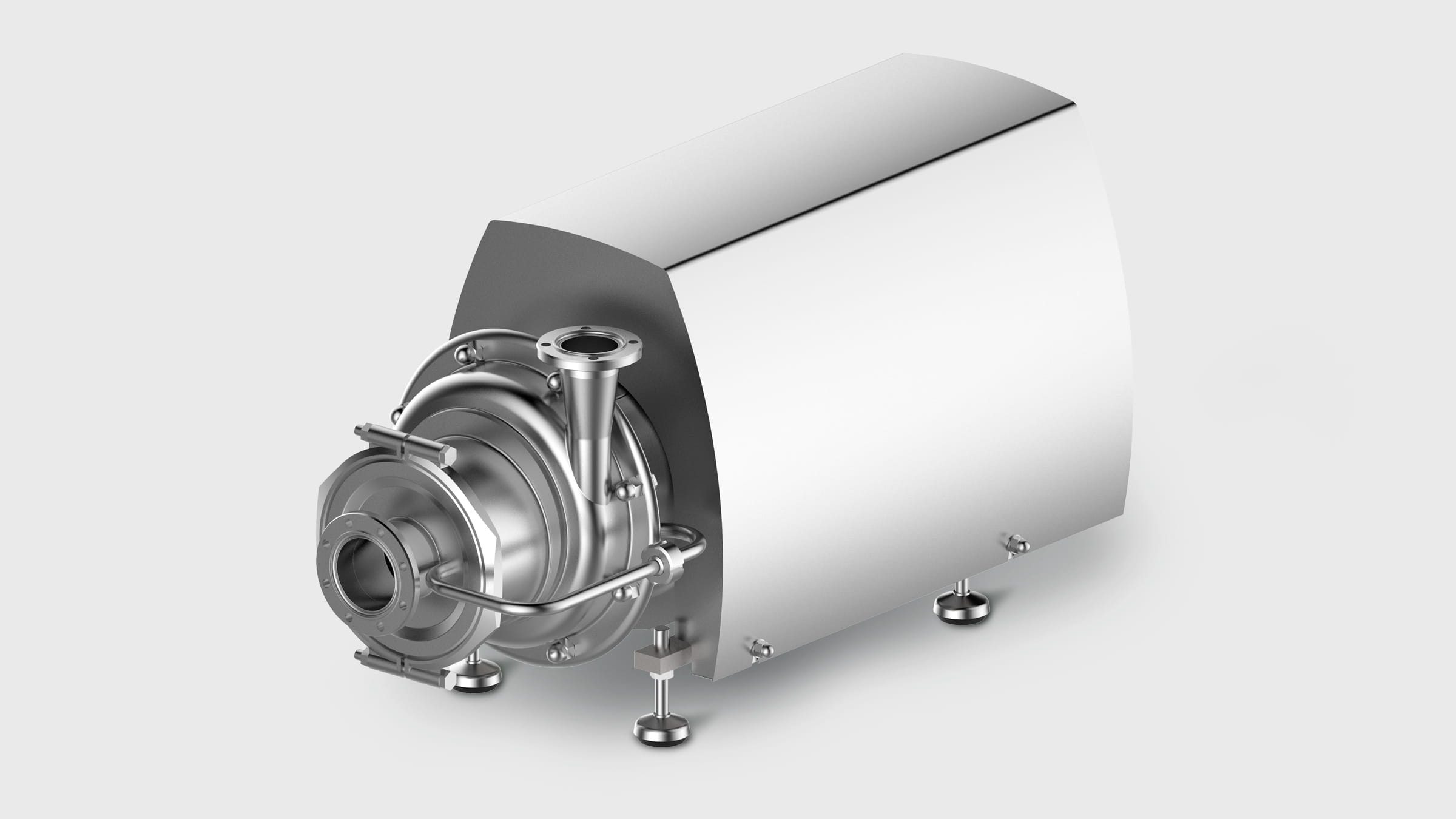

GEA HILGE TPS

The self-priming, hygienic GEA Hilge TPS centrifugal pumps are available in four model sizes and are optimized for a variety of applications. The centrifugal pump GEA Hilge TPS is a selfpriming pump for viscosities of up to 500 mPas. The TPS is characterized by a low sound level, highest efficiency and excellent cleaning properties. The GEA Hilge TPS series also permits evacuation of pipes on the suction side – so that just one pump is required for CIP return and product conveying.
