SAWA

Stainless Steel hygienic centrifugal pumps, side channel pumps and peripheral pumps

SAWA Pumpentechnik AG manufacture a range of high quality pumps for the most demanding hygienic applications and industries.

SAWA pumps are manufactured from solid 1.4435 (316L) stainless steel. Their flow-optimised design with zero deadspace throughout the pump internals ensures they are robust, durable, very quiet in operation, require minimal maintenance and are exceptionally hygienic, with full CIP and SIP compatibility.

All SAWA pumps are available in special pharmaceutical execution which includes enhanced surface finish to Ra < 0.4μm and electropolishing of all wetted components. Certification of delta ferrite content < 1% or 0.5% is available for critical applications such as WFI.

SAWA pumps can be supplied with sanitary mechanical seals in a wide variety of materials to ensure process compatibility. Alternatively, they are available with magnetic drives to ensure zero product leakage and eliminate mechanical seal maintenance.

A wide performance envelope and flexibility of design means SAWA hygienic pumps are extremely popular in the food, beverage, chemical, pharmaceutical and biopharmaceutical industries. In fact, for all industries that require cleanable, aseptic or sanitary pumps, there is likely to be a SAWA pump.

High-quality materials, exact manufacturing and total quality control guarantees a product that will deliver superb performance and durability. SAWA understands the requirements of the pharmaceutical and biopharmaceutical industries and deliver pumps to meet these exacting standards.

Elastomers can be provided with FDA, USP Cl. VI, EU 1935/2004, ADI-free,phtalate-free, BPA (bisphenol A)-free certification. Metallic parts can be provided with 2.2 and 3.1 DIN EN 10204 certification,  measurement reports of surface roughness, delta ferrite content and noise level, electropolishing certification and a host of other documentation.

Established in 1911, SAWA Pumpentechnik AG is a family-owned company based in Dagersheim Switzerland and currently managed by the 4th generation of the Schmidhauser family.

Michael Smith Engineers are the sole representative for SAWA Pumpentechnik AG in the UK and Ireland. Explore the product range on our website or contact us for further information. We can assist with any query or pump requirement.

pumps for the dairy industrypumps for beer pumps for pharma  pumps for animal feedpumps for pharma

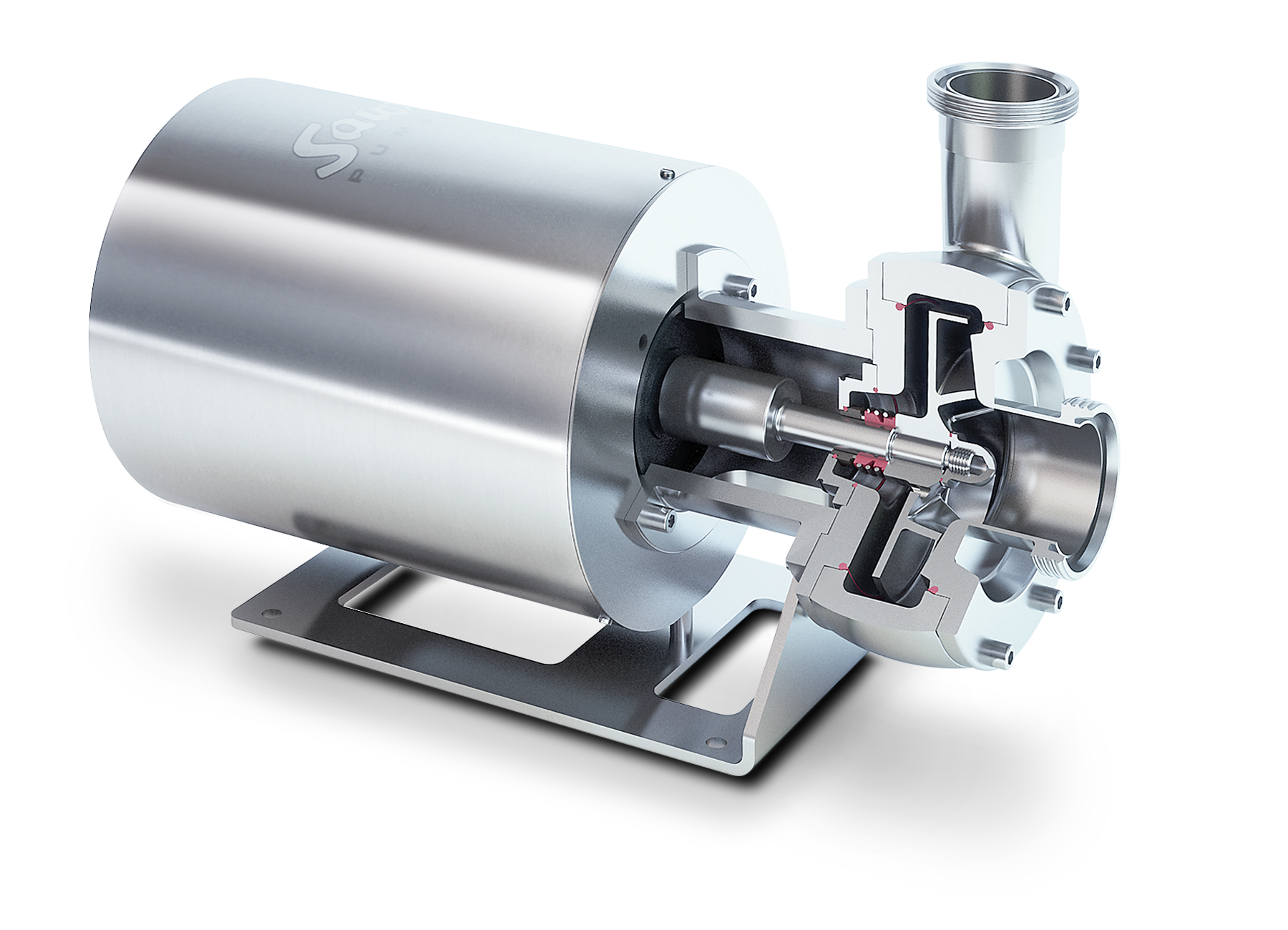

Hygienic Centrifugal Pumps

Hygienic Centrifugal Pumps

SAWA hygienic pumps are suitable for a wide range of applications from food and drink to pharmaceuticals.  The standard priming SAWA centrifugal pumps offer quiet operation and efficiency due to their flow-optimised geometry.  The centrifugal pumps are CIP and SIP capable and can therefore be cleaned quickly.  The robust and thick-walled design also allows the pumping of solids-laden and abrasive liquids.

  • Flow rates up to 240 m³/h
  • Delivery head up to 100 m
  • Temperature range from -30°C to 150°C
  • Maximum viscosity up to 500 mPas
More Info

Self-Priming Hygienic Side-Channel pumps

Self-Priming Hygienic Side-Channel pumps

These pumps provide a gentle and quiet pumping action. The pump features an impressive suction capacity (up to 7 m) and an excellent pumping behaviour with liquids containing gas. It can also be operated in both directions.

  • Flow rates up to 70 m³/h
  • Delivery head up to 43 m
  • Temperature range from -30°C to 145°C
  • Maximum viscosity up to 500 mPas
More Info

Hygienic Peripheral Pumps

Hygienic Peripheral Pumps

The Sawa P series peripheral pump is the right choice for all applications in which low flow rates and pulsation-free pumping against high pressure is required. The symmetrical design is suitable for both left and right rotation.  Peripheral pumps are ideal for handling low viscosity liquids, low flow against moderate to high pressure. They offer an alternative to positive displacement pumps in these stuations.

  • Flow rates up to 7 m³/h
  • Delivery head up to 100 m
  • Temperature range from -30°C to 200°C
  • Maximum viscosity up to 150 mPas
More Info
