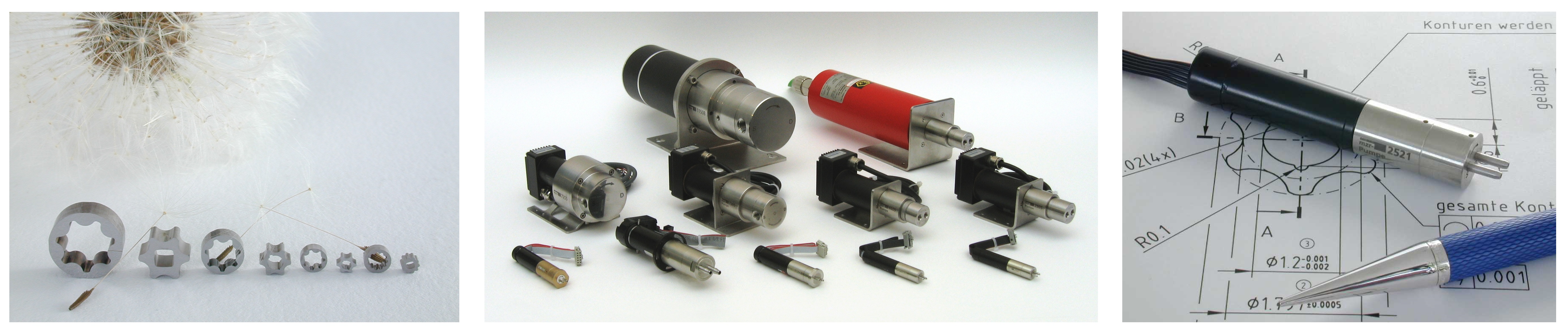

Micro Annular Gear Pumps

The MZR ranges of micro annular gear pumps from HNP Mikrosysteme are miniature positive displacement pumps, ideal for low capacity metering, dosing and dispensing applications.  Designed for precise, accurate, smooth, pulse-free pumping and dispensing, these compact pumps are ideal for OEMs looking for low maintenance pumps for their systems.

Click here to see information on the complete HNPM range

Contact us here or call us on freephone 0800 3167891



MAIN PERFORMANCE PARAMETERS
Flows  1 microlitre/hr to 1 l/min
Dispensing Down to 2 microlitre droplets
Viscosities 0.2 - 1,000,000 cP
Differential pressure 0 - 200 Bar
Pumping accuracy Better than 1%
Flow pulsation  1.5 to 6.3% peak to peak



FEATUREBENEFIT
Low pulsation output Easy to monitor, consistent output
Magnet drive designs Leak free pumping
Positive displacement pumps Accurate, reliable output
Choice of wetted materials Minimise corrosion/erosion, extend pump life & service interval
Low shear pump action Maintain product quality
High hydraulic efficiency Low power drives, lower running costs
Compact dimensions Simple to incorporate in systems, small footprint
ATEX options Suitable for use in hazardous areas
Wide range of drives & controllers Easy to set up, programme and operate
Choice of accessories & pump modules Simple to customise for your application
Complete pumping systems available Built to your specification, ready-to-use, modular designs



TYPICAL APPLICATIONS
Pumps for fuel cell applications
Pumps for biotechnology applications
Pumps for fuel analysis applications
Pumps for flow chemistry applications
Pumps for life science applications
Pumps for lab-on-chip applications
Pumps for continuous processing applications



TYPICAL USES
Accurate pulse-free dispensing pumps
Low flow pumps
Precise smooth output metering pumps
Pumps for Active Pharmaceutical Ingredients manufacture
Accurate compact pumps for spraying applications
Ink and paint dosing pumps
Pumps for analytical instruments
Smooth flow metering pumps
Chemically resistant pumps
Small, compact accurate pumps
Leak free magnet drive pulseless pumps
Pumps for high viscosity liquids
Low pulsation dosing pumps
Adhesive dispensing pumps
Chromatography pumps
