Finish Thompson pump DB6HP-T-B-7-74 pumping sodium chlorate

FINISH THOMPSON DB SERIES PUMP MODEL DB6HP-T-B-7-74 FOR PUMPING SODIUM CHLORATE 40%

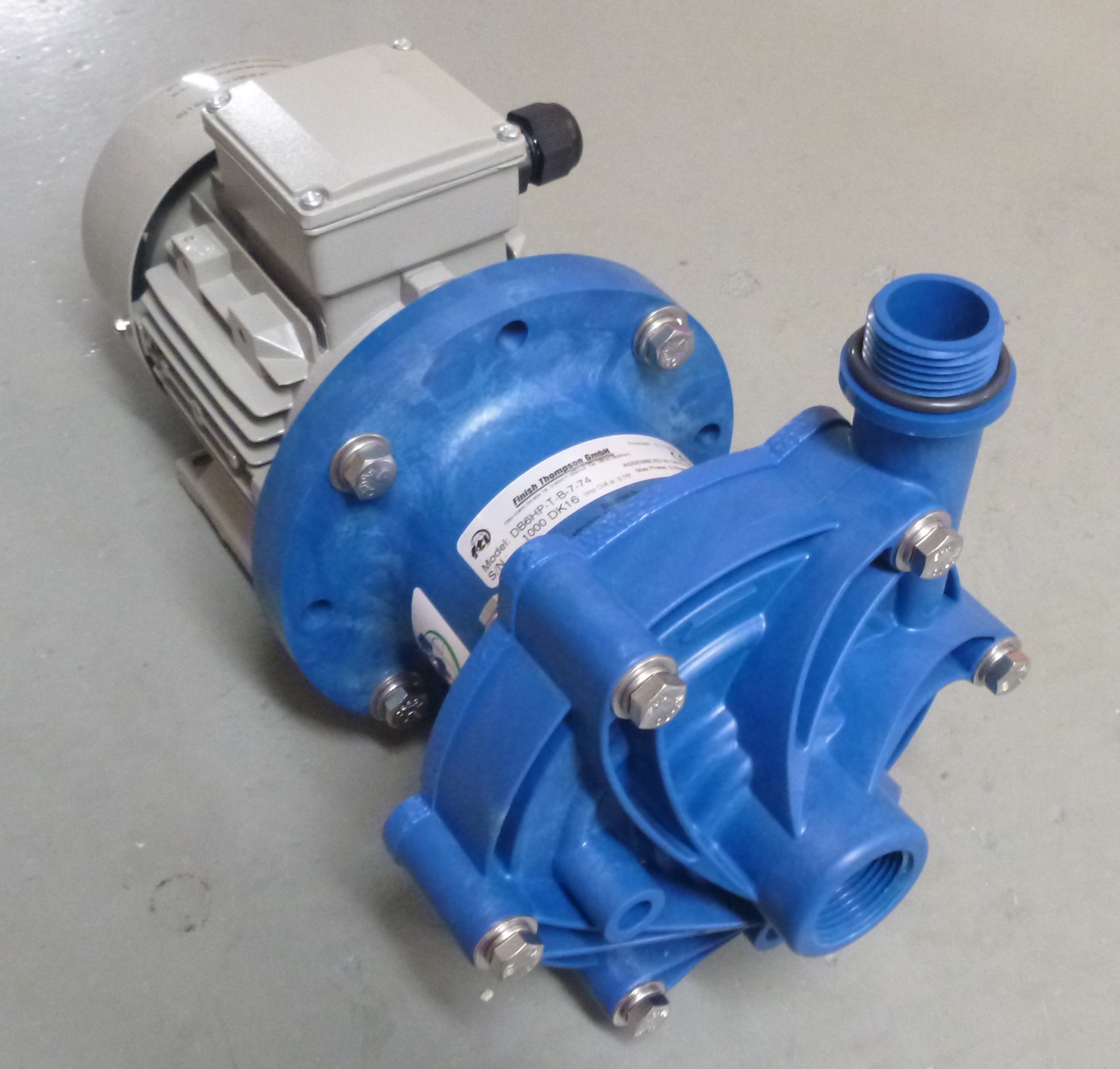

	Finish Thompson magnetically coupled centrifugal pump model DB6HP-T-B-7-74 close coupled to a 0.37 kW, 2 pole, 400 volt three phase, IE1, 50 hertz, TEFC fixed speed motor Liquid - Sodium Chlorate 40% Flow Rate - 7 m³/hr Pressure - 5 m differential head Viscosity - 1 cP Wetted Materials - Polypropylene, PTFE, FKM

FINISH THOMPSON DB SERIES PUMP MODEL DB6HP-T-B-7-74 FOR PUMPING SODIUM CHLORATE 40%

Centrifugal pump for transferring chemicals at a chemical manufacturer

Finish Thompson magnetically coupled centrifugal pump model DB6HP-T-B-7-74 close coupled to a 0.37 kW, 2 pole, 400 volt three phase, IE1, 50 hertz, TEFC fixed speed motor

Liquid - Sodium Chlorate 40%
Flow Rate - 7 m³/hr
Pressure - 5 m differential head
Viscosity - 1 cP
Wetted Materials - Polypropylene, PTFE, FKM
