DB series pump model DB6HV-B-7-8P-74 pumping sulphuric acid

Contact us

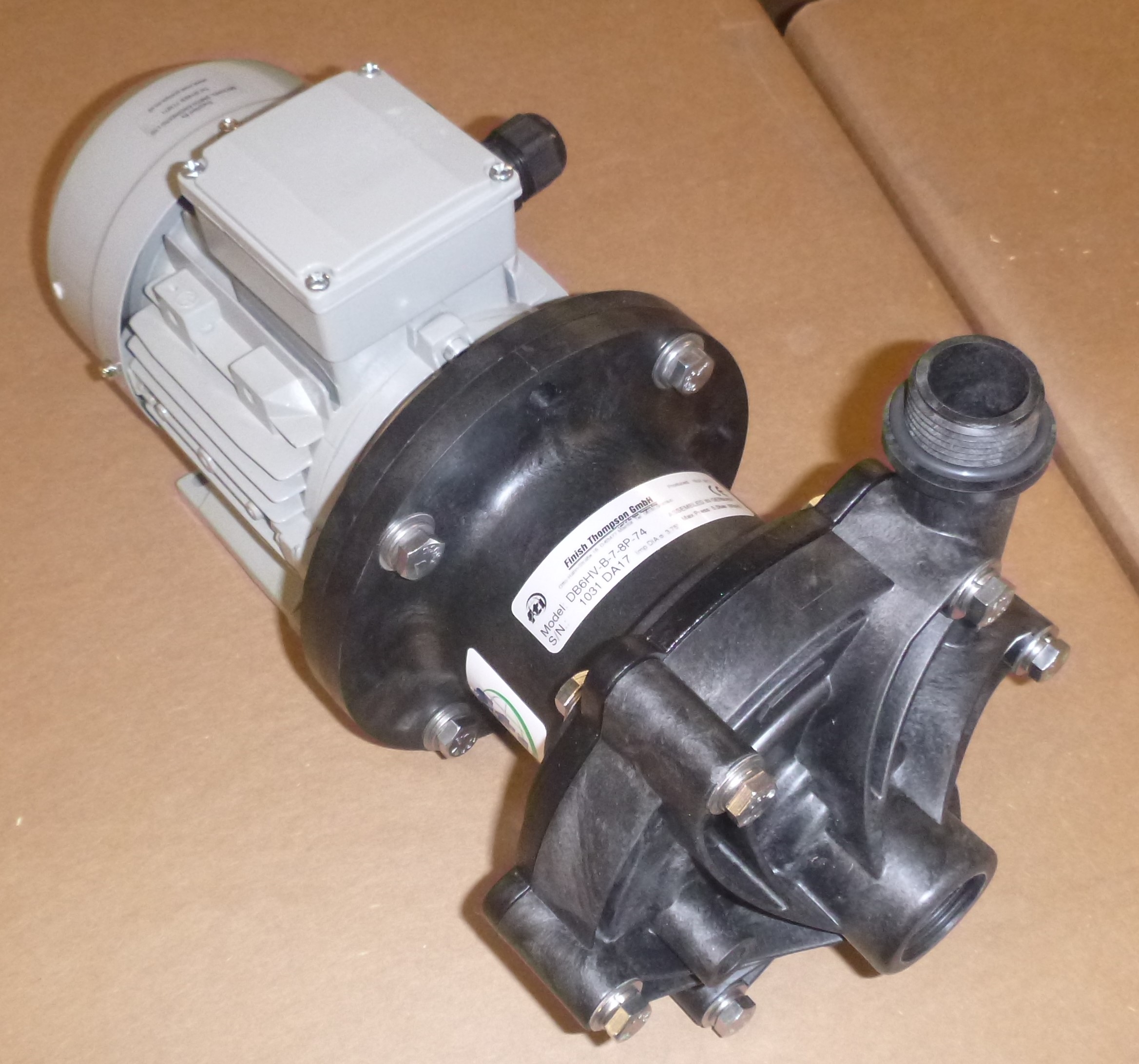

FINISH THOMPSON DB SERIES PUMP MODEL DB6HV-B-7-8P-74 FOR PUMPING SULPHURIC ACID
	Finish Thompson magnetically coupled centrifugal pump model DB6HV-B-7-8P-74 close coupled to 0.55kW, 2 pole, 230/400 volt three phase, IE1, 50 hertz, TEFC fixed speed motor Liquid - 96% Sulphuric Acid Flow Rate - 7 m³/hr Pressure - 5 m Viscosity - 1 cP Wetted Materials - PVDF, Carbon , FKM

FINISH THOMPSON DB SERIES PUMP MODEL DB6HV-B-7-8P-74 FOR PUMPING SULPHURIC ACID

PVDF magnet drive pump fortransferring chemicals at a water treatment plant

Finish Thompson magnetically coupled centrifugal pump model DB6HV-B-7-8P-74 close coupled to 0.55kW, 2 pole, 230/400 volt three phase, IE1, 50 hertz, TEFC fixed speed motor

Liquid - 96% Sulphuric Acid
Flow Rate - 7 m³/hr
Pressure - 5 m
Viscosity - 1 cP
Wetted Materials - PVDF, Carbon , FKM
