HYDRA-CELL G SERIES PUMP MODEL G15X FOR PUMPING DIESEL

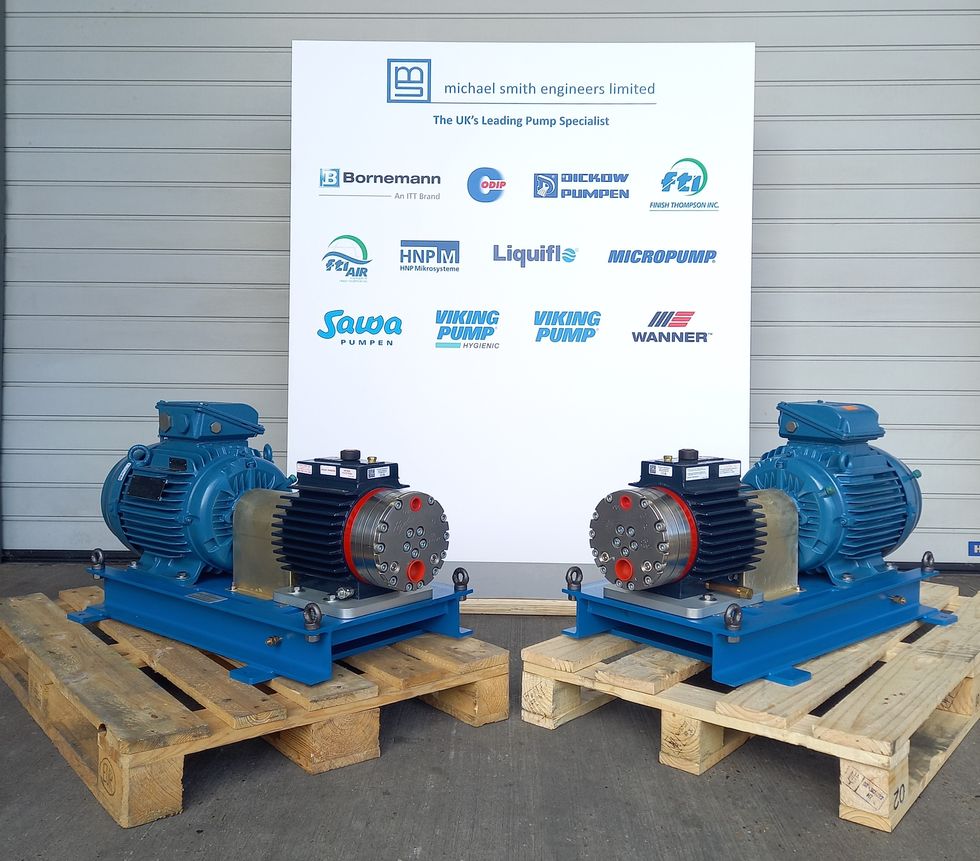

A project involved supplying a pair of stainless-steel Hydra-Cell G15 multi-diaphragm pumps from Wanner International for a high pressure duty/standby diesel transfer system.

The Hydra-Cell’s seal-less multi-diaphragm design offers reliable, leak-free performance where other technologies would struggle. The G15 model is capable of discharge pressures up to 172 bar, comfortably covering this 40 lpm vs 90 bar duty.

Wanner Hydra-Cell G15XKSGHFEMB complete with 11 kW, 4 pole, 400 volt, 3 phase, 50 Hz IEC160M B3 ATEX zone 2 IIC T3 IP55 IE3 motor with thermistors on baseplate with guard.

• Liquid - Diesel
• Flow Rate - 40 l/min
• Temperature - 38°C
• Density - 850 kg/m³
• Viscosity - 3 cP
• Discharge Pressure - 90 Barg
