HYDRA-CELL G SERIES PUMP MODEL G13XKSGHFECA FOR PUMPING LIQUIFIED PROPANE AND BUTANE

At Michael Smith Engineers, we have decades of experience supplying pumping solutions for the energy sector - supporting applications from green hydrogen production and biogas transfer to fuel oils and LPG pumping systems.

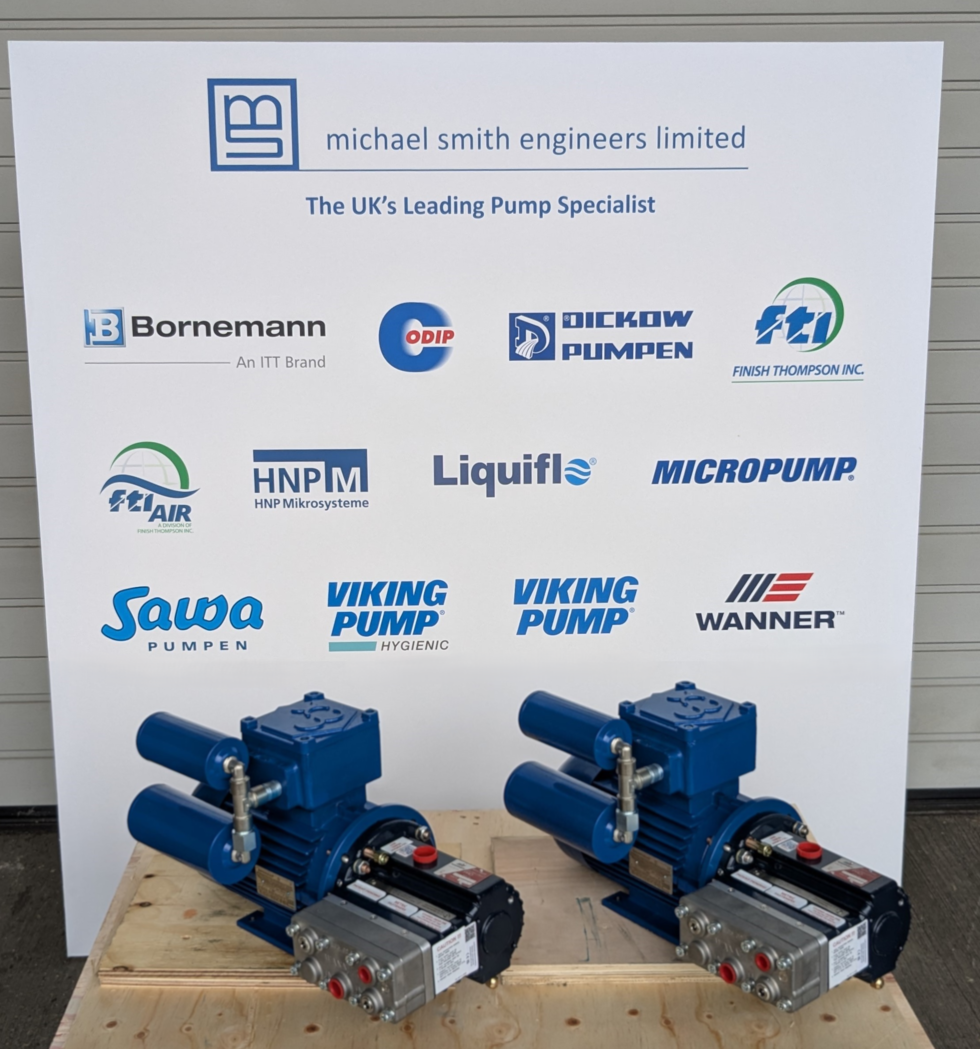

A recent project with a major energy producer involved supplying stainless steel Hydra-Cell G13 multi-diaphragm pumps from Wanner International, specifically for LPG transfer. These pumps are close-coupled to 1.5 kW single-phase motors, giving a flow rate of 500 l/hr at 40 bar discharge pressure. Fully ATEX Zone 1 rated for hazardous environments

Whether you’re working with hydrogen, biogas, LPG, or fuel oils, our team can help specify the right energy sector pump for your process - reliable, safe, and built for demanding applications

Wanner Hydra-Cell model G13XKSGHFECA complete with 1.5 kW, 4 pole, 250 volt, 1 phase, 50 Hz, ATEX Zone 1 Ex db II2G IIB T4 CE Gb CAP/CAP IE1 fixed speed motor IP65 with anticondensation heaters.

• Liquid - liquified propane and butane with traces of sulphur and mercaptan
• Flow Rate - 500 l/hr
• Temperature - 40°C
• Density - 493 kg/m³
• Viscosity - 8 cP
• Discharge Pressure - 40 Barg
