LIQUIFLO H SERIES PUMP MODEL H5RLPP4B202000US
FOR PUMPING JET A1 FUEL

Fuel applications represent a significant market for us, covering everything from simple drum pumps for AdBlue transfer to multistage, mag-drive centrifugal pumps for aircraft refuelling systems.

For more viscous fuel oils, gear pumps are often the preferred choice. However, they are equally well suited to thinner fuels such as Jet-A1 -  particularly in low-flow, low-pressure metering applications. That’s exactly where this stainless steel H5R mag-drive gear pump from Liquiflo excels.

This unit is close-coupled to a 0.37 kW, 4-pole motor rated for ATEX Zone 1, delivering approximately 5 LPM at 5 bar differential pressure. While Jet-A1 has a viscosity not much higher than water, the precision design of the H5R makes it ideal for accurate and reliable metering duties.

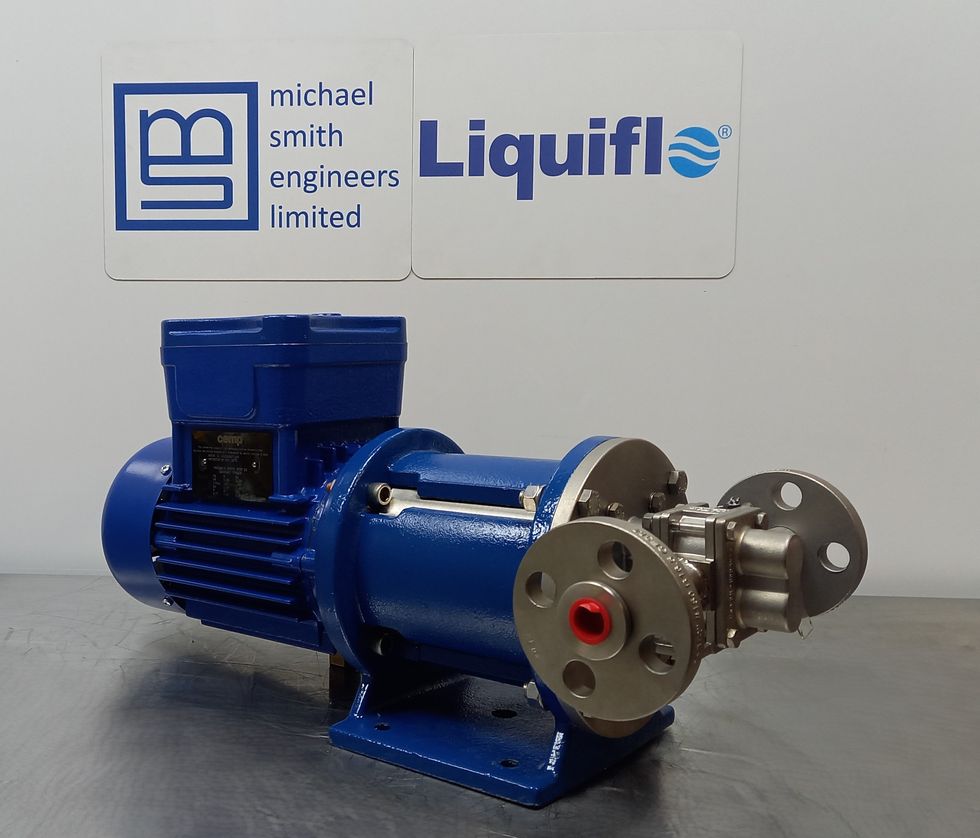

Liquiflo magnet drive pump model H5RLPP4B202000US with ½” ANSI 150# RF flanges, close coupled to 0.37 kW, 4 pole, 400/3/50 Hz ATEX Ex II 2G Ex db IIB T4 Gb IP55 motor with thermistors.

• Liquid - Jet A1 Fuel
• Flow Rate - 5 l/min
• Discharge Pressure - 5 barg
• Temperature - Ambient
• Viscosity - 1.4 cP
• Density - 0.8 g/cm³
