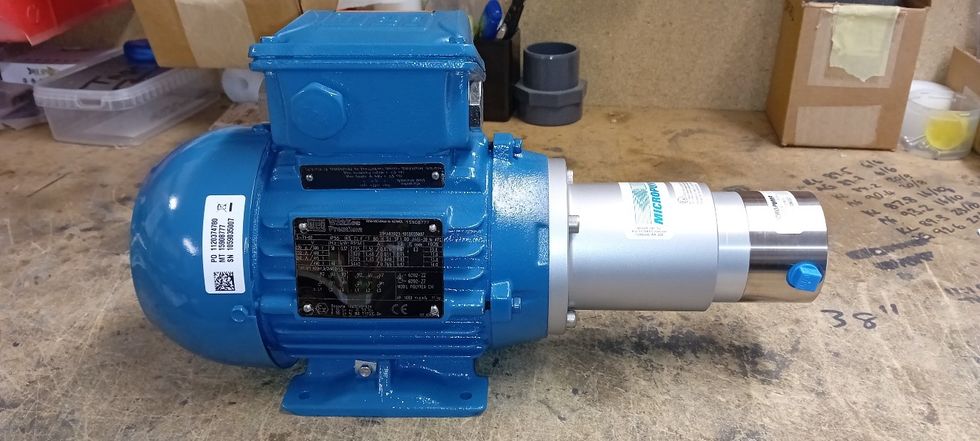

This is an ATEX compliant GC-M35 mag-drive external gear pump from Micropump. This is one of a pair of pumps being supplied to a hydrogen production company for use in their alkaline electrolysers.

Unlike PEM electrolysis, alkaline water electrolysis uses high system pressures, and that is one of the reasons for choosing the Micropump GC series. These pumps can operate at up to 103 bar system pressure, so the 50 bar required on this occasion is no problem for them. They are also more than capable of handling the strong chemicals used in this process, in this case 20% Potassium Hydroxide (KOH) delivered at 10 litres per minute.

Micropump magnetically coupled external gear pump model GC-M35.JF5S.6-ATEX with ⅜" NPT connections close coupled to 0.37 kW 2 pole 400 volt 3 phase 5-50 Hz IEC Ex / ATEX II 3G Ex ec IIC T3 Gc IP55 motor with thermistors.

• Liquid - Potassium Hydroxide
• Flow Rate - 10 l/min
• System Pressure - 50 bar
• Differential Pressure - 0.45 Bar
• Temperature - 20°C
• Viscosity - 1.8 cP
• Wetted Materials - 316 stainless steel casing, PEEK gears, Teflon o-rings
