VIKING GEAR PUMP MODEL LS124E FOR PUMPING REFINED BITUMEN

If you have a requirement to pump hot (180°C) bitumen at about 600 litre per minute, then a Viking Pump LS124E running at 470 rpm with an 11 kW motor is what you need.

Usually, a bitumen pump would be fitted with a steam heated jacket, but that is not only option available from Viking, and in this case the customer has opted for electric heating on the pump head.

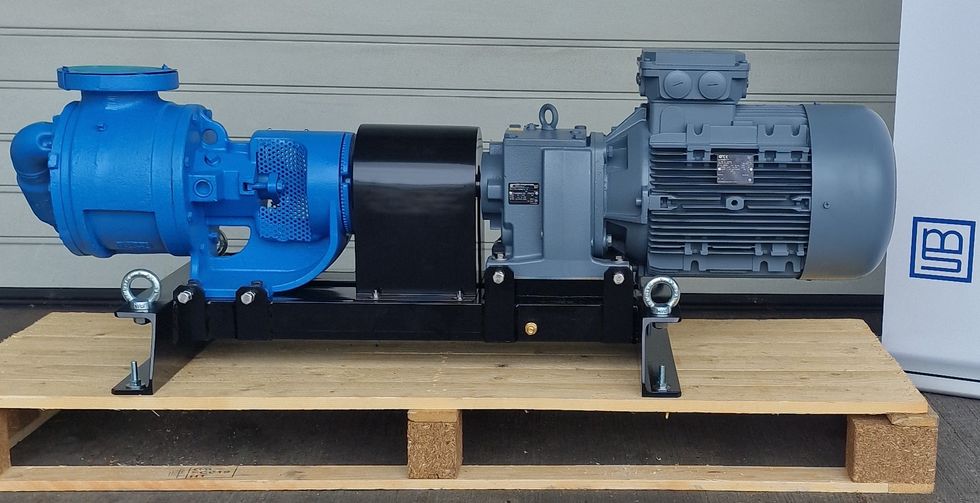

Viking internal gear pump model LS124E complete with 470 RPM gearbox with 11 kW, 4 pole, 400 volt, 3 phase, 50 Hz, IP55 motor mounted on baseplate via coupling and guard.

• Liquid - Refined bitumen
• Flow Rate - 560 l/min
• Density - 0.9 g/cm³
• Viscosity - 125 cSt
• Temperature - 180°C
• Differential Pressure - 3 Bar
• Wetted Materials - Cast iron / ductile iron / hardened steel
