Solution for complex LPG transfer application

26 Feb 2026

One of the world's leading bulk liquid logistics companies recently took delivery of the first in a batch of multistage mag-drive self-priming centrifugal pumps. The pumping parameters of a high-pressure liquid at 80 m3/hr vs 120 m differential head are challenging in themselves, but the addition of an ATEX zone 1 requirement, 40 bar system pressure, and an operating range of -40°C to +50°C means that only the highest quality pump will suffice.

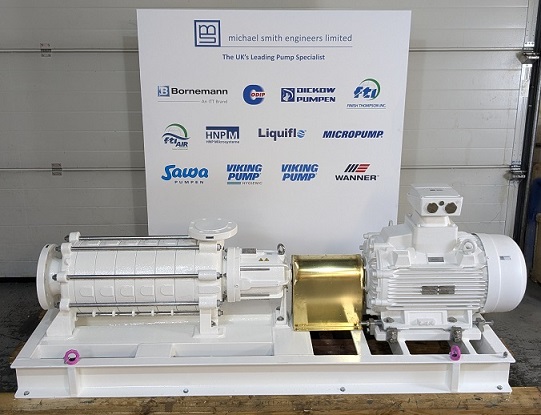

Our solution was the Dickow HZSMA hx 1026 multistage centrifugal pump with magnetic coupling and side channel priming impeller. The addition of the side channel impeller provides excellent self-priming capability, an essential requirement for this installation. The HZSMA also offers a number of design features that make it ideal for this application. These include a unique heat dissipation design, axial thrust compensation through pressure balancing, and high-performance shaft bearings. The pump is also fitted with containment shell temperature monitoring for protection from dry running and loss of containment.

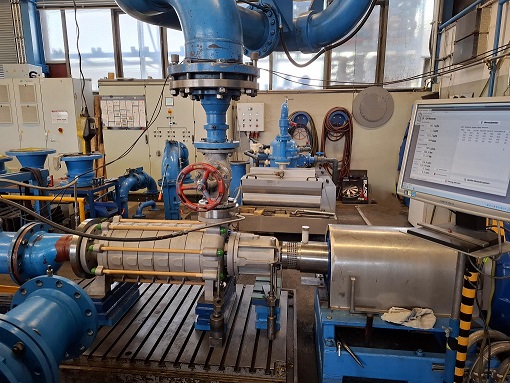

As befits such a demanding application, a wide range of witnessed performance tests were also provided, including hydrostatic, vibration, impeller balance, noise, and even an impact test at -40°C.

For more information on the Dickow range or for assistance with your own pumping challenges please get in touch
