DICKOW PUMP MODEL NCL hu 80/210 FOR PUMPING JET FUEL

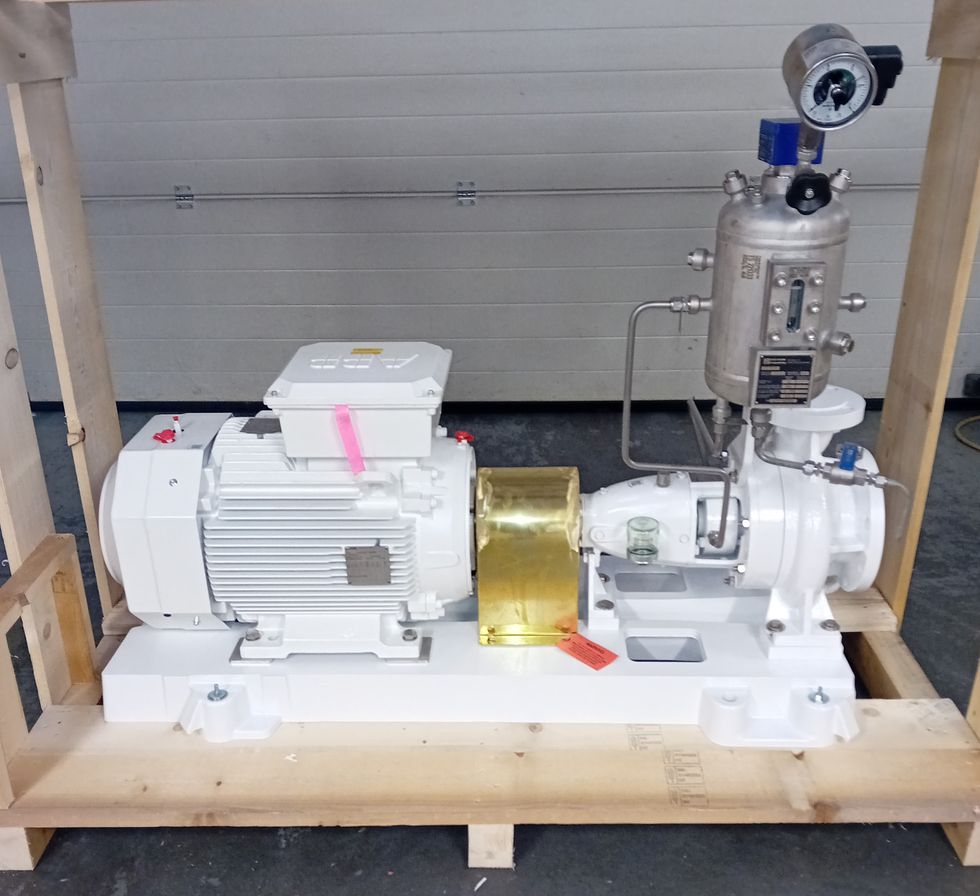

This magnificent piece of engineering is destined for a career pumping jet fuel. The pump itself is a cast steel NCL hu 80/210 centrifugal unit with double mechanical seal from Dickow Pump. This is long coupled to an ABB 37 kW 2 pole ATEX motor. The pump is fitted with the Dickow thermosyphon plan 52 seal support system. This provides a safety shutdown facility in the event of seal failure. The pump is also fitted with temperature monitoring for the bearings.

The complete assembly has a C3 paint finish in RAL 9003.

Dickow double mechanical seal pump model NCL hu 80/210 with 6” x 3” ANSI 150# connections long coupled to ABB 37 kW, 2 pole, 415 volt, 3 phase, 25-50 Hz, IP55, ATEX Ex II 3G Ex ec IIC T3 Gc motor including thermistors on a base with guard.

• Liquid - A1 jet fuel
• Flow Rate - 163 to 171 m³/hr
• Differential Head - 54.53 metres
• Density - 807.5 kg/m³
• Viscosity - 2.4 cP
• Temperature - 15°C
• NPSHA - 12.87 metres
• Wetted Materials - Carbon steel / 316 stainless steel / cast iron
