FINISH THOMPSON DB SERIES PUMP MODEL DB11 FOR  PUMPING ACID EFFLUENT

Centrifugal pump for transferring corrosive liquids

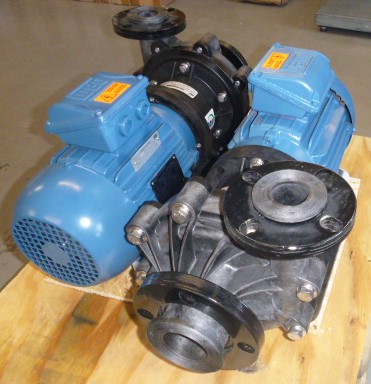

Finish Thompson magnetically coupled centrifugal pump model DB11V-T-FF-6-8P-94 close coupled to a 2.2kW, 2 pole, 415 volt, three phase, IE3, 50 hertz, IP55, fixed speed motor (fitted with 230/1/50 anti-cond heaters

  • Liquid - Acid effluent
  • Flow Rate - 6 m³/hr
  • Pressure - 21 m differential head
  • Viscosity - 0.8 cP
  • Wetted Materials - Carbon-fibre reinforced PVDF, FKM, High purity alumina ceramic, Molybdenum disulfide filled PTFE
