HYDRA-CELL METERING PUMP MODEL G10 SERIES FOR PUMPING TOLUENE

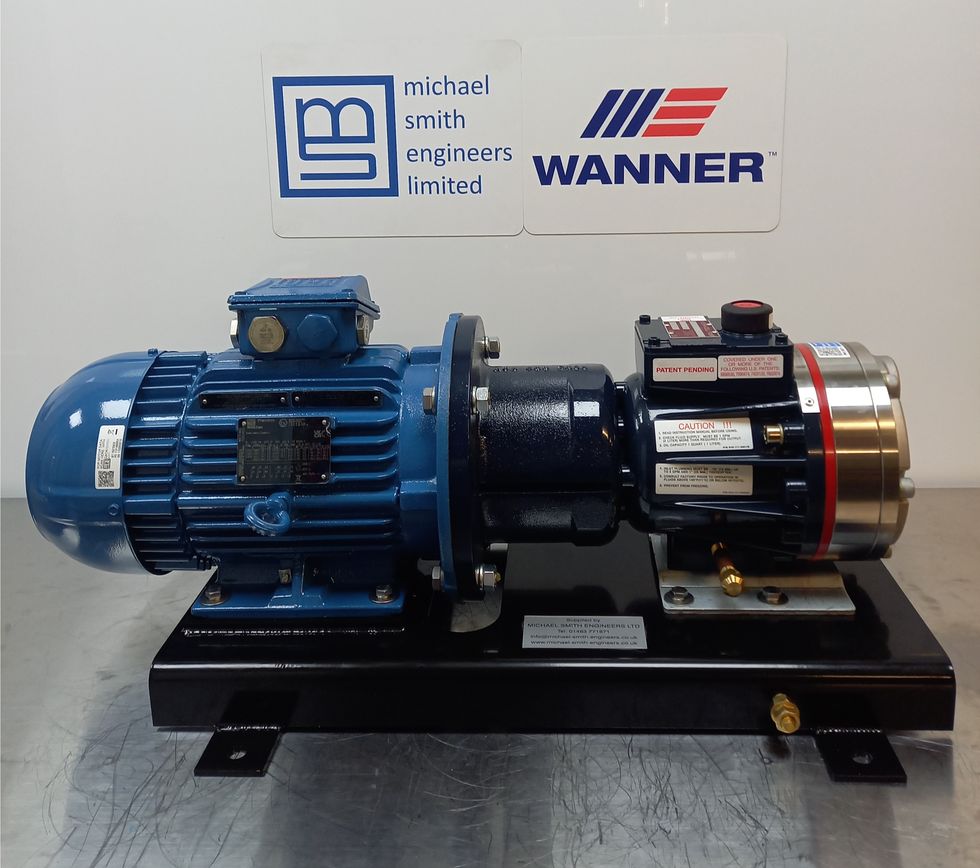

Repeat order for a seal-less Hydra-Cell G10 multi-diaphragm pump from Wanner International Ltd. This very popular pump provides virtually pulse-free flow and is destined for use by one of our long-standing customers for the precise transfer of toluene at elevated pressures of 15-20 bar.

Given that toluene, like most solvents, is highly flammable, both the pump and the close-coupled 3 kW motor are ATEX Zone 2 rated (oil monitoring bowl for the pump not pictured), ensuring safe and compliant operation in hazardous environments.

Wanner pump model G10 with 1” x ¾” BSPT connections including ATEX oil bowl for zone 2 area close coupled to 3 kW 4 pole 400/3/5-50 Hz IP55 IE3 ATEX II 3G Ex ec IIC T3 Gc motor including thermistors on baseplate.

• Liquid - Toluene
• Flow Rate - 2 to 20 l/min
• Discharge Pressure - 15 to 20 bar
• Temperature - 20°C
• Viscosity - 0.56 cP
• ATEX - Zone 2
• Wetted Materials - 316 stainless steel / Kalrez (FFKM) / PTFE / Elgiloy / Nitronic
