VIKING INTERNAL GEAR PUMP MODEL KK1224A FOR PUMPING ADHESIVE

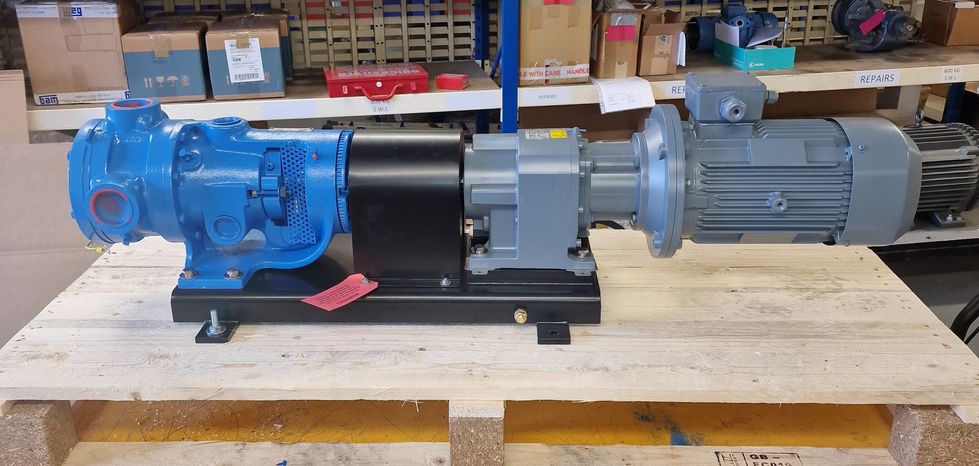

When we fit a slow running gearbox to a gear pump it usually means that the liquid involved is very viscous. That is the case here with this KK1224A from Viking Pump, long coupled to a Nord 126 RPM gearbox and 3 kW 4 pole motor. The liquid being pumped is a resin based adhesive and even at the operating temperature of 180°C it is still pretty thick and needs robust and reliable pump to handle it.

• Liquid - Resin / polymer based adhesive
• Flow Rate - 0.342 Nom / 0.569 Max Kg/s
• Pressure - 0.1 to 0.3 mPa
• Temperature - 180°C
• Viscosity - 600 to 3,000 mPas
• Wetted Materials - Cast iron / ductile iron / hardened steel / FFKM
