VIKING INTERNAL GEAR PUMP MODEL SG-80716-M0O FOR PUMPING MOGAS

Another successful project for a refinery fuel additive system! Once again, the SG series from Viking Pump proves to be the ideal solution.

These magnetically coupled external gear pumps offer safe leak-free transfer of additives in a hazardous environment, for trusted, ATEX compliant, virtually pulse-free operation.

The units are ATEX Zone 1 rated and include 2.2 kW 4-pole motors delivering ~45 LPM at up to 16 bar differential pressure.

If you’re working with fuel, fuel additives, or similar applications, a solution from Viking Pump could be exactly what you need.

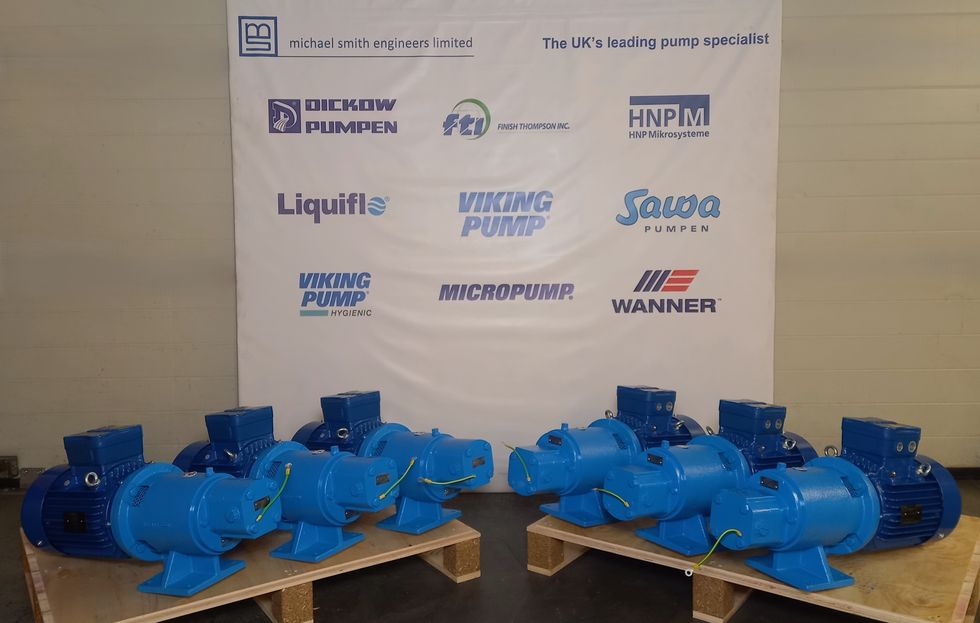

Viking pump model SG-80716-M0O complete with 2.2 kW 4 pole 400/3/50 ATEX II 2G Ex-db IIB T4 IP55 motor

• Liquid - BP Mogas Additive
• Flow Rate - 45 l/min
• Differential Pressure - 16 Bar
• Viscosity - 19.03 cP
• Wetted Materials - Ductile iron / hardened steel / carbon graphite / stainless steel
