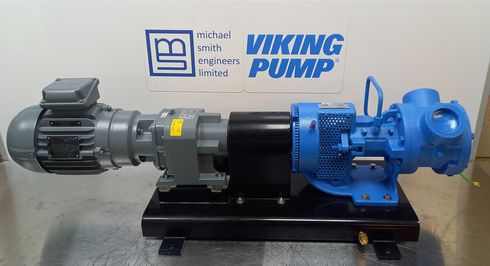

This AK4124A internal gear pump from Viking Pump Inc has been supplied with the ports in the ‘V’ configuration. This has been done at the request of the customer as the pump will be located underneath a hot oil system at a food production facility and will run bidirectionally.

The pump is long coupled to a Nord 1.1 kW 4 pole gear motor and will transfer 5 m³/hr of vegetable oil at 180°C.

Viking mechanically sealed pump model AK4124A with 2” NPT connections long coupled to 2.62 ratio gearbox with 1.1 kW 4 pole 400/3/50 Hz IP55 motor with thermistors on baseplate.

• Liquid - Vegetable oil
• Flow Rate - 4 to 6 m³/hr
• Pressure - 1 Barg
• Temperature - 180°C
• Viscosity - 2 to 5 cP
• Wetted Materials - Cast iron / ductile iron  / hardened steel / carbon graphite
