VIKING GEAR PUMP MODEL SG-40528 FOR PUMPING WATER / GLYCOL MIX

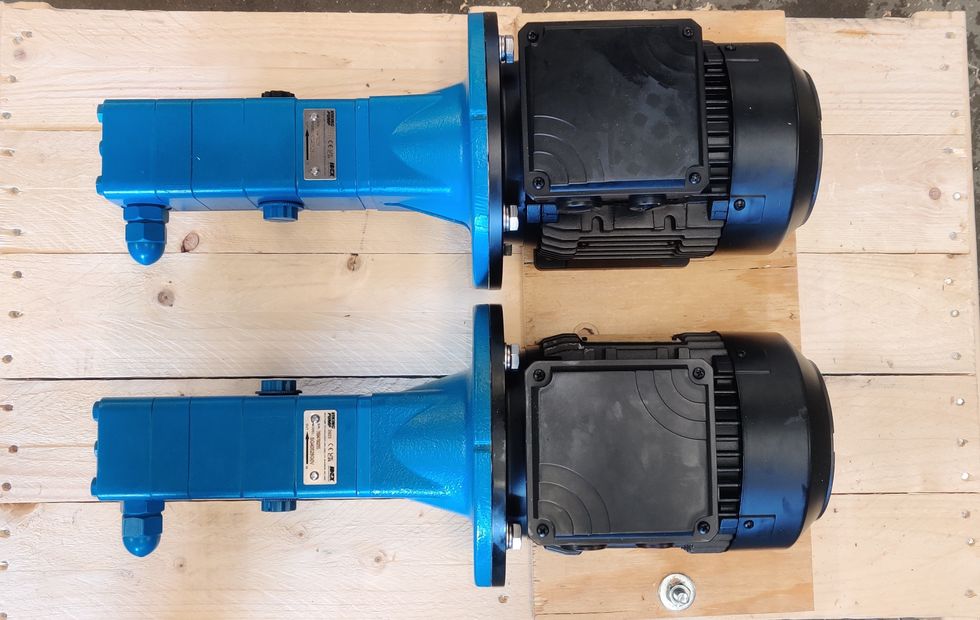

These are stainless steel SG Series™ spur gear pumps from Viking Pump. Fitted with a mechanical seal, pressure relief valve, and close coupled to 0.55 kW 4 pole motors.

The pumps will be circulating a water/glycol mix at 26 LPM on a cooling system for very large electrical equipment.

Viking mechanically sealed external gear pump model SG-40528 close coupled to a 0.55 kW, 4 pole, 230/400 volt, three phase, 50 Hz, motor. ¾” NPT connections. NPSHR = 3.5 metres. Includes a pressure relief valve set.

• Liquid - 40% glycol, 60% water
• Flow Rate - 26 l/min vs 22 psi
• Denisty - 1.07 SG
• Viscosity - 2 cP
• Temperature - 25 to 45°C
