Safe, reliable, leak-free pumping with side channel pumps
01 Jun 2021

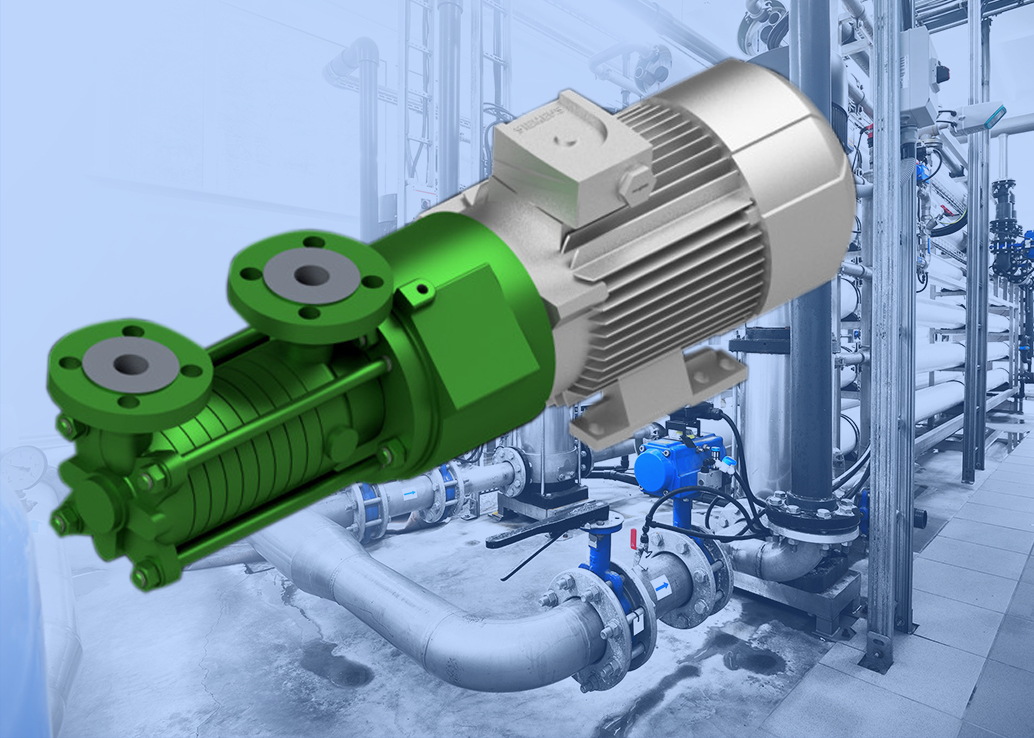

When fluids handling applications require safe and reliable pumping of thin, low viscosity liquids, such as liquefied gases or refrigerants the new Dickow WPM Series are an ideal choice. Available from pump specialists Michael Smith Engineers these new options of self-priming, horizontal, side-channel pumps are suitable for handling clean liquids without solids in chemical and petrochemical industry applications.
The magnet drive single or multi-stage side channel design of the WPM Series pump enables safe, leak-free pumping of thin liquids at 4 pole speeds of high differential heads up to 150 metres covering flow rates from around 2 lit/min up to 40 lit/min. Compared to standard centrifugal pumps they offer more economical pumping when the combination of low capacities and high heads is required.
They are available in 316 stainless steel or Hastelloy-C materials and in two designs. One for system pressures to 16 bar, the other for system pressures up to 110 bar, an ideal option for pumping liquefied gases or refrigerants. Maximum operating temperature for the standard pump design is 150ºC.
They are also able to prime empty suction lines after initial filling with liquid to be pumped or any other liquid compatible with the pumped liquid. The magnet coupling with the static containment shell forms a closed hermetically sealed leak-free system which eliminates the need for double mechanical seals, along with external fluid reservoirs and associated control equipment.
The single elements of the multipolar magnet coupling are manufactured from Neodymium-Iron-Boron with unlimited lifetime operation, while the magnets in the driven rotor are completely encapsulated and not in contact with the pumped liquid. Power is transmitted to the hermetically sealed liquid end by a bank of external magnets with the inner and outer magnet rings securely locked together by the magnetic forces and work as a synchronous coupling.
To achieve the self-priming capability, high efficiency and rated differential pressure, there are tight clearances between the rotating impeller and the stationary disks. During priming, a stable fluid film between the impellers and the disks centres the impeller in the chamber.
When coupled with suitable flameproof certified motors, the Dickow WPM side channel pumps can also be specified for pumping flammable liquids and be safely installed in hazardous areas.
